Senior Ali VU Windows

Ali VU is a super slimline aluminium window with a polyamide thermal break giving impressive thermal efficiency. Available with a host of design options, Ali VU’s strong super slim frame has a depth of just 38mm (fixed light) or 66mm with standard vent and is available in sizes up to a maximum of 1400mm x 1400mm, to give the widest views and maximise daylight in every room.

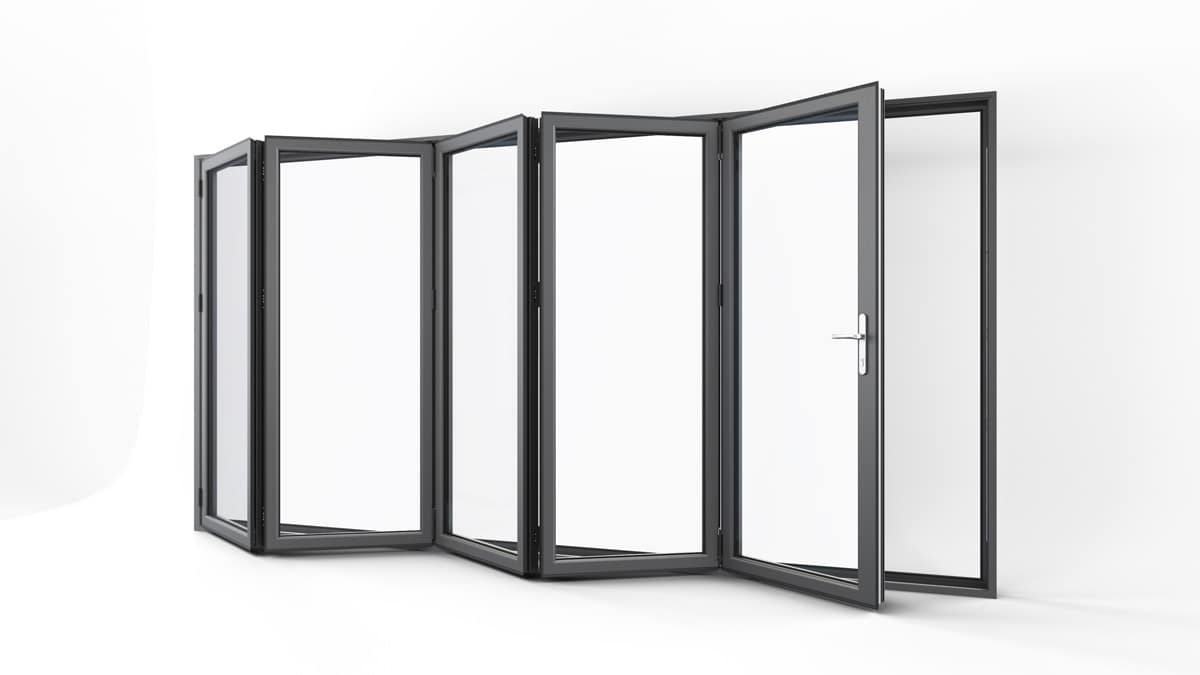

Ali VU is ideal for both domestic and large-scale residential projects and is perfectly complemented by our Ali FOLD door range. The stepped face option also means that Ali VU is perfect as a modern, energy efficient replacement for heritage style steel windows in both commercial and residential buildings.

  • Features
  • Downloads
  • Technical Information
  • Opening Options

Available Configurations:

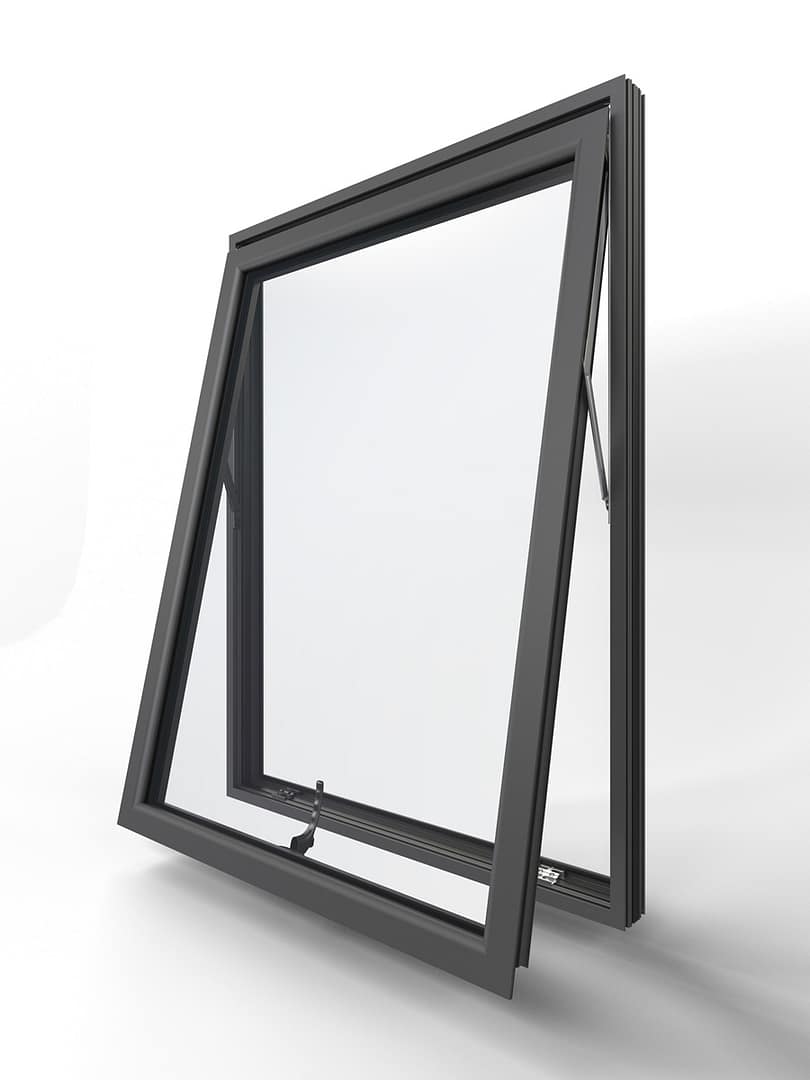

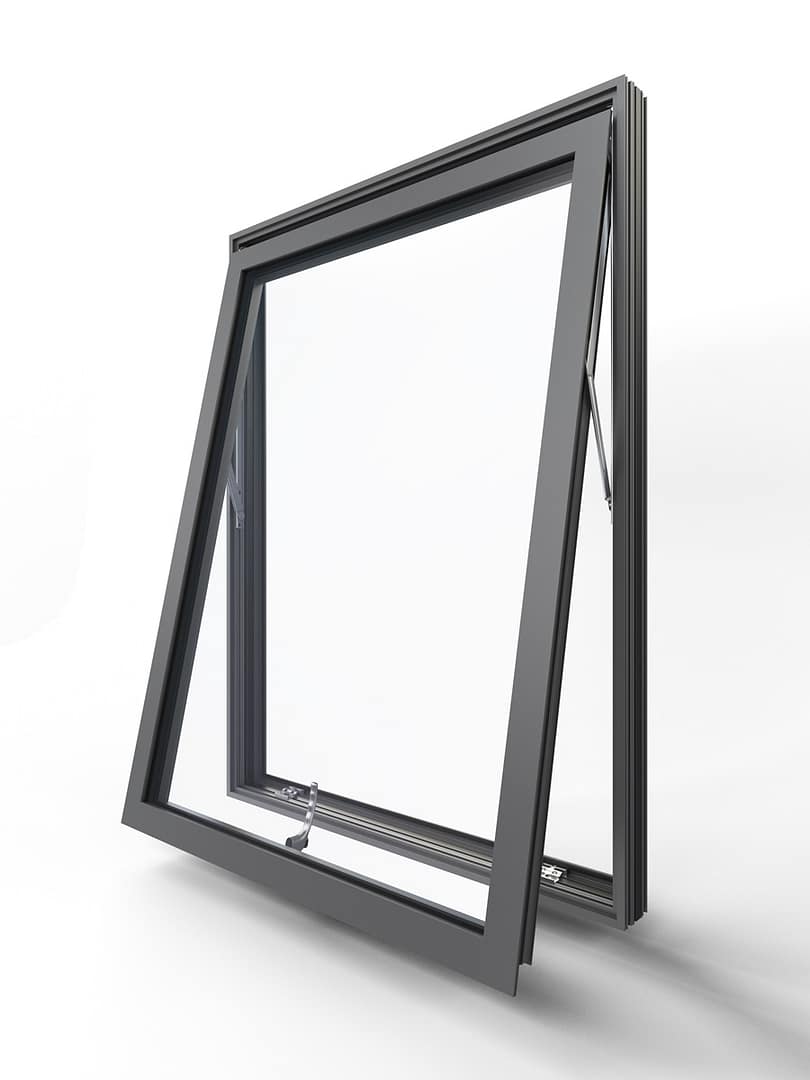

  • Open Out Casement (Top or Side-hung)

Outstanding Performance

  • High performance polyamide thermal barrier giving U-Values as low as 1.0 W/m2K when calculated as a domestic CEN Standard window
  • Further thermal enhancement is possible using 2 different backer rods, to achieve required U values
  • Designed to achieve triple glazed A+ Window Energy Rating; double glazed A Window Energy Rating
  • Able to receive double or triple glazing up to 24mm – 36mm on the radius and stepped vent and up to 24mm – 44mm on fixed outerframe and flat faced vents for maximum thermal and acoustic performance
  • Fully security tested to PAS24:2012 Enhanced Security
  • Weathertight and strong – tested to: BS6375 Part 1 Weather; BS6375 Part 2 Operation & Strength; BS6375 Part 3 Annex A

Clever design and stylish aesthetics

  • Flush casement option with standard or deep outer frames

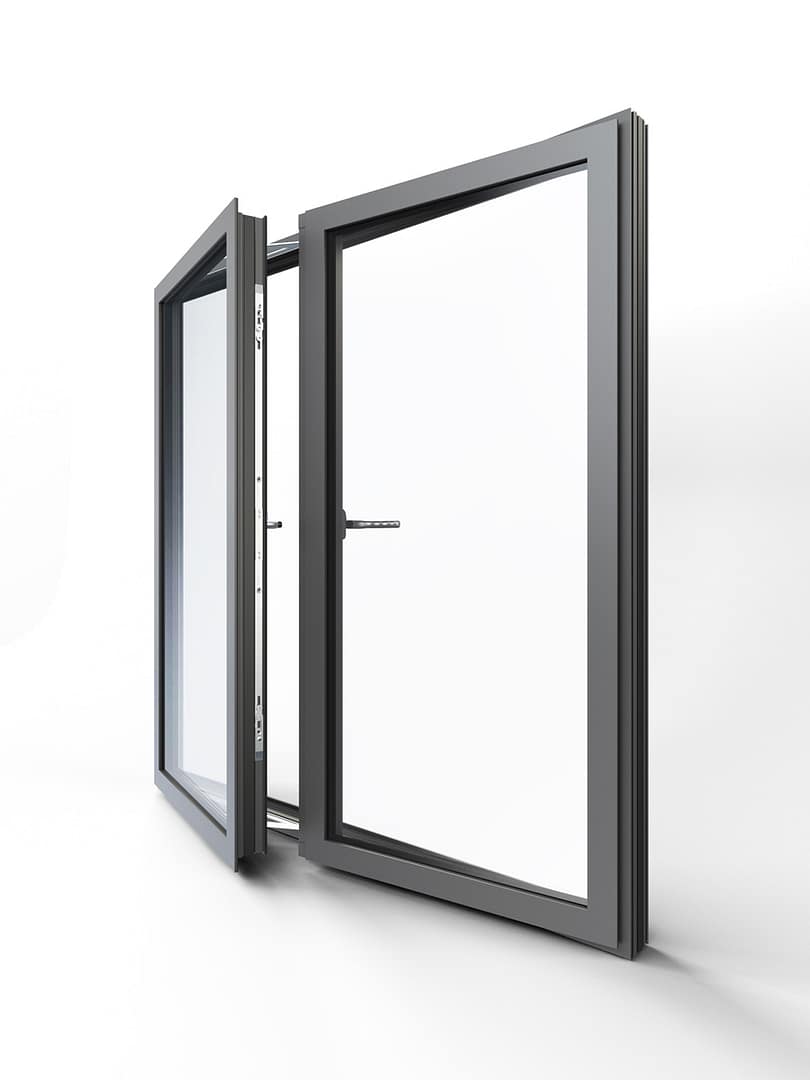

  • French Casement Window option with central floating mullion allows a fully opened aperture to give uninterrupted views
  • Available in an almost unlimited range of colours and finishes both inside and out
  • Choice of square or chamfered beads
  • Radius, flat faced and stepped vent options

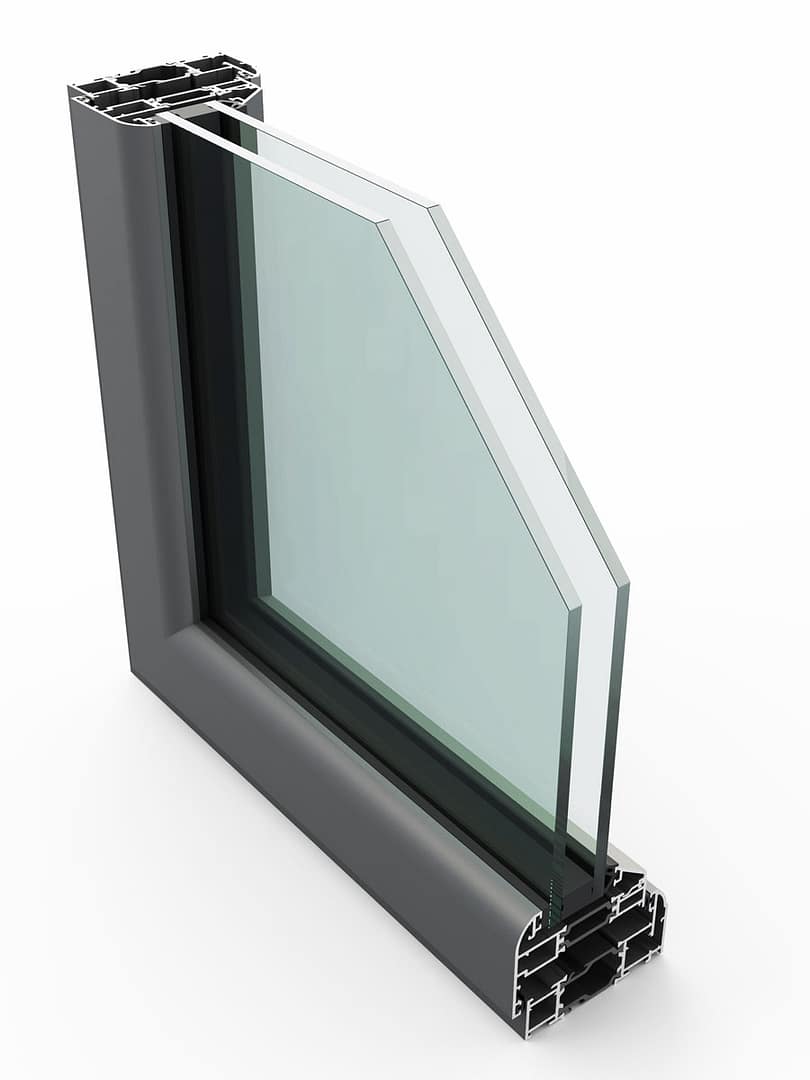

  • Both standard and feature (ovolo style) outer frames available
  • Available with a range of cills, baypoles and corner posts to create a diverse range of bay windows designs
  • Sizes up to a tested maximum of 1400mm x 1400mm top hung and 950mm x 1400mm side hung – for larger sizes contact our technical department
  • Ali VU Multi Frame allows a wide range of configurations of fixed lights and vents in the same window
  • Ali VU Long Leg Multi Frame gives even more flexibility around window reveals and plaster lines
  • Fully compatible with any of our door and curtain wall systems

Easy to fabricate & install saving time and money

  • Constructed using mitred corners, joined with crimped cleats
  • Alignment chevrons assist in clean, accurate mitres
  • A proprietary sealant is used on all metal joints in line with good practice
  • Punch tool available for help in fabrication
Ali VU Casement Window Technical Datasheet

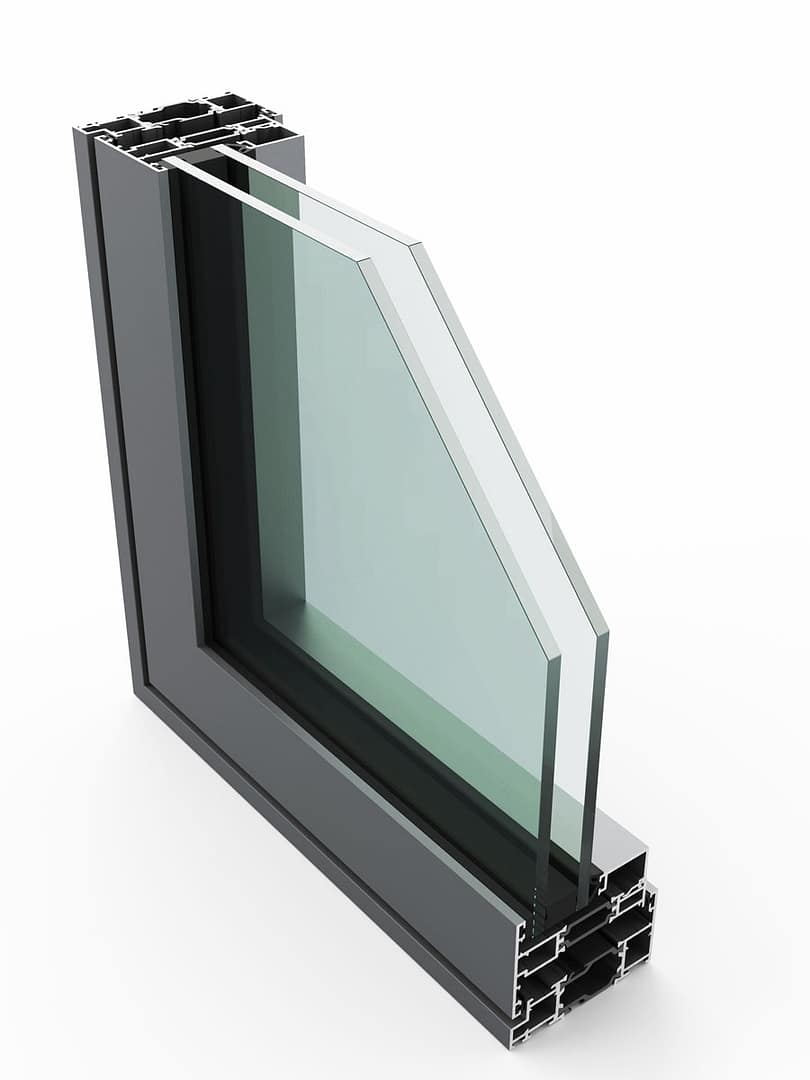

Ali VU Flush Casement Window Technical Datasheet

* Sections provided are typical examples of this window system, there are many options available, for details of the exact sections used in your quote, please request the CAD detail from us when discussing your quote.

Properties

Residential CEN standard (Double Glazed)
1.4 W/m²K
Residential CEN standard (Triple Glazed)
1.0 W/m²K
Glazing – Radius & Stepped Vent Option
24mm – 36mm
Glazing – Outer Frames & Flat-faced Option
24mm – 44mm

Performance

Comfort

Reynaers CS77 Windows and Doors
Water Tightness
600Pa
Reynaers CS77 Windows and Doors
Wind Resistance
1600Pa

Safety

Reynaers CS77 Windows and Doors
Security
PAS24 & SBD

Energy

The technical information shown above is based on typical tests, the size of the windows, glass choice and profile choice can all affect the achieved rating, please ask us if you are unsure what your actual windows achieve, we are able to provide a variety of reports.
