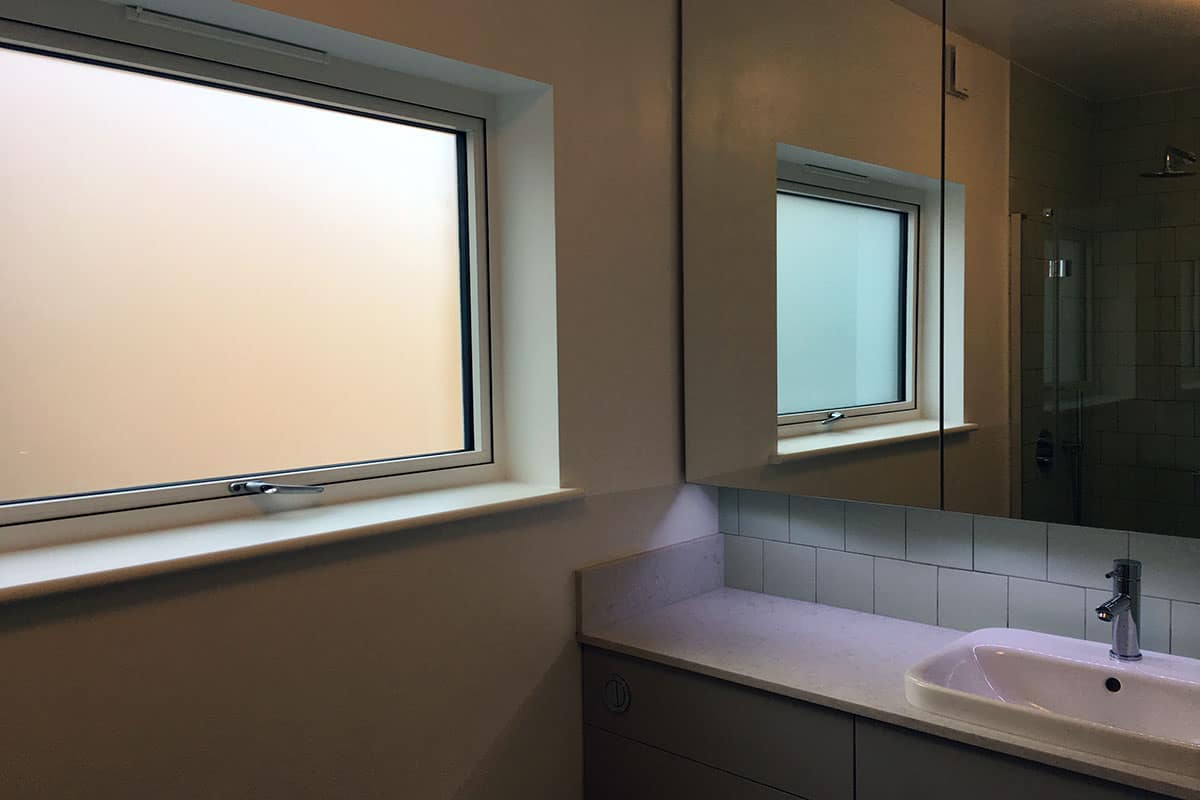

Reynaers SL68 Aluminium Windows

Reynaers’ Slimline 68 window system is specifically designed to meet the demand for an outward opening window with very slim profiles.

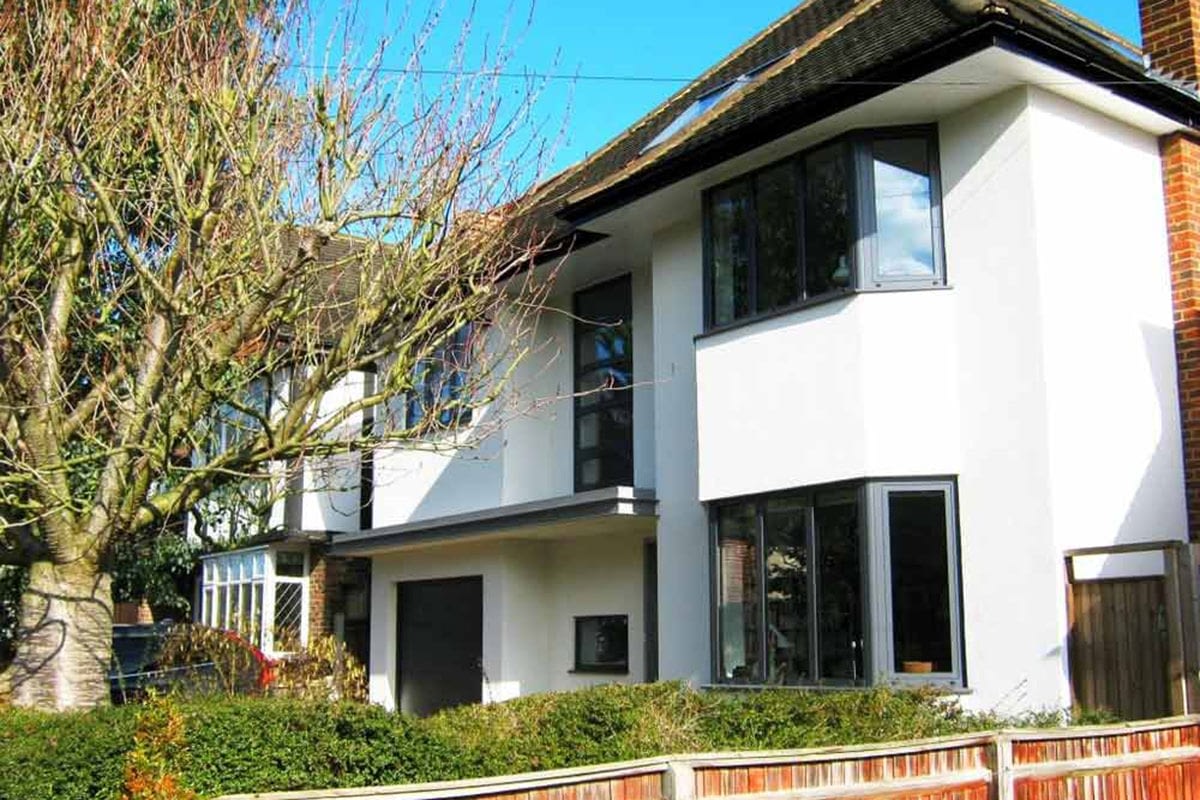

Particularly suited to use in residential properties, this window maximises the glass area to let in lots of natural daylight. The slim frames and clean lines make this window ideal for both contemporary and more traditional properties, as the design of the window mimics the sight lines of the original steel-framed windows. Its 68mm frame depth makes it perfect as a replacement window as it usually fits within the existing plaster line.

SlimLine 68 vents can be glazed from the inside as well as the outside and are available on a standard and a HI insulation level.

  • Features
  • Downloads
  • Technical Information
  • Opening Options

Performance

The SlimLine 68 window was designed by a highly experienced team of engineers at Reynaers’ purpose-built, world-class design and testing facility. As with all Reynaers products, this window has been put through the most stringent test regime, ensuring that it is one of the highest-performing and most reliable windows available.

  • Huge range of design options
  • Ultra slim frame
  • Double- and triple-glazed options
  • Easy clean egress hinge option
  • Strong and durable
  •
Low maintenance
  • Secured by Design accreditation
  • Window Energy Rating up to A++
  • U-value as low as 1.1W/m2K

Style Options

All Reynaers windows and doors are made to meet your exact requirements. From the design and size of the window to the colour of the frame and handle, there are almost unlimited options. When you choose Reynaers at Home, you can make your windows and doors truly individual, a design statement to be proud of.

Brochure

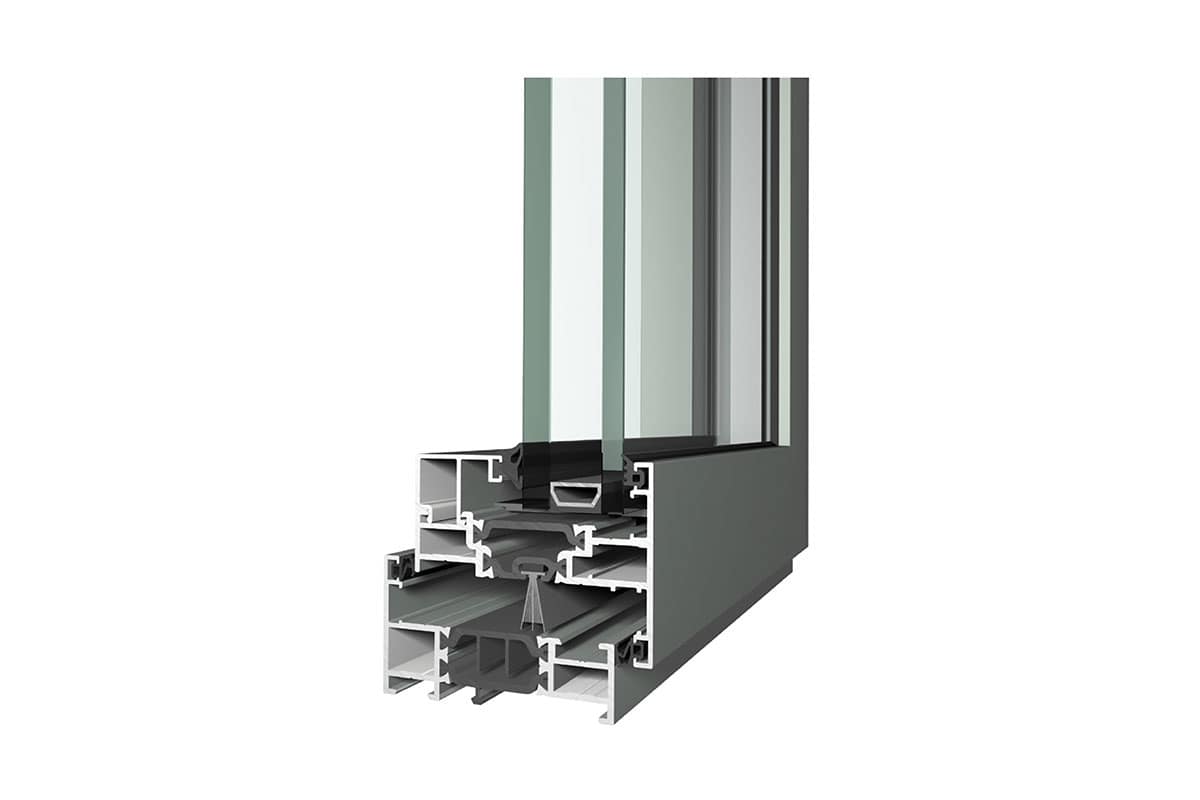

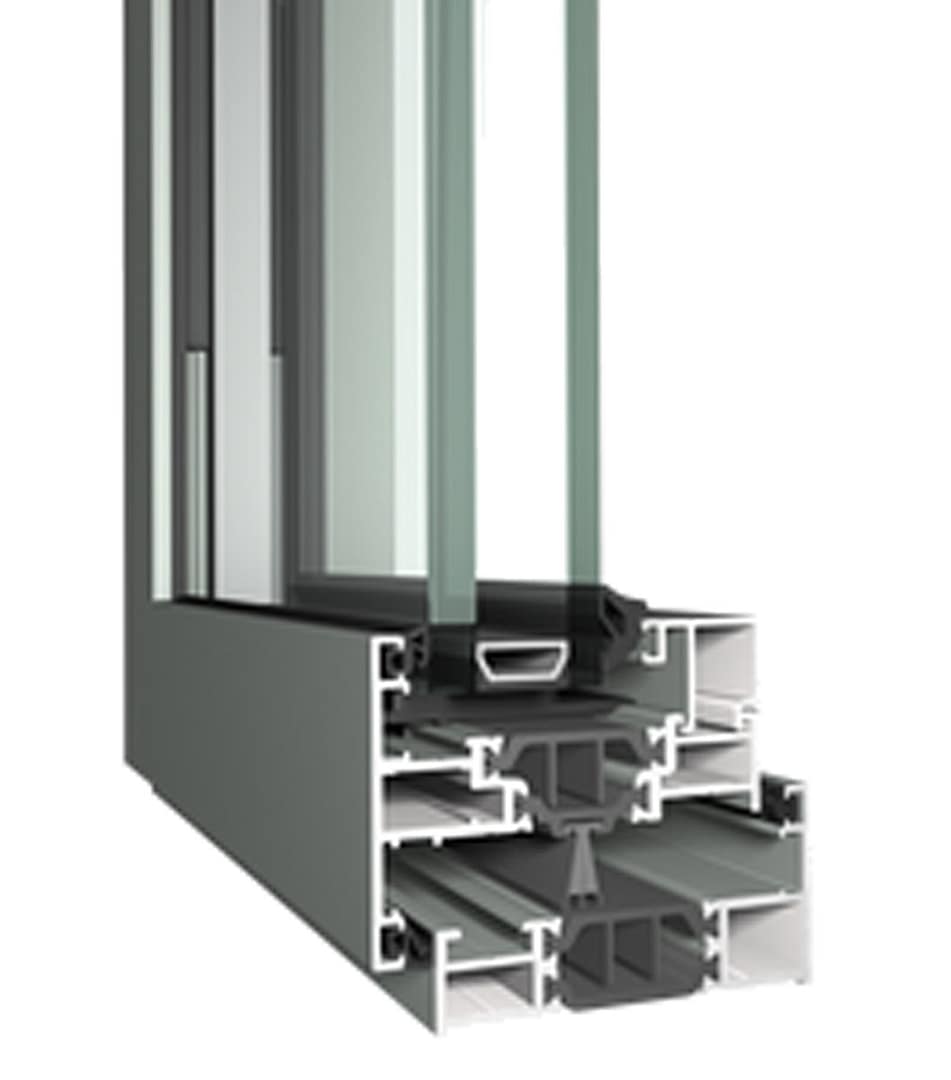

Sections

* Sections provided are typical examples of this window system, there are many options available, for details of the exact sections used in your quote, please request the CAD detail from us when discussing your quote.

Properties

Min. Visible width frame: outward opening
15 mm
Min. Visible width frame-vent: outward opening
65 mm
Min. Visible width T-profile
50 mm
Max. height vent
1500 mm
Max. width vent
1200 mm
Overall system depth frame
68 mm
Overall system depth vent
68 mm
Rebate height
18 mm
Min. Glass thickness
26 mm
Max. Glass thickness
43 mm
Min. Glass thickness vent
26 mm
Max. Glass thickness vent
43 mm
Glazing method
Dry glazing with EPDM or neutral silicones
Thermal break
Omega Shaped Fibreglass

Performance

Comfort

Reynaers CS77 Windows and Doors
Air tightness max. test pressure
4 (600 Pa)
Reynaers CS77 Windows and Doors
Water tightness
E1200 (1200 Pa)
Reynaers CS77 Windows and Doors
Wind load resistance
Exxx (>2000 Pa)
Reynaers SL38 Aluminium Windows
Acoustic performance
47(-2;-7) dB

Safety

Reynaers CS77 Windows and Doors
Burglar resistance
Burglar resistance PAS 24

Energy

Thermal insulation
(Uf) 1,4 W/m²K

The technical information shown above is based on typical tests, the size of the windows, glass choice and profile choice can all affect the achieved rating, please ask us if you are unsure what your actual windows achieve, we are able to provide a variety of reports.

Outward opening

Reynaers CS77 Windows and Doors
Reynaers CS77 Windows and Doors
Reynaers CS77 Windows and Doors

Fixed

Reynaers CS77 Windows and Doors
Reynaers SL38 Aluminium Windows
