Reynaers SL38 Aluminium Windows

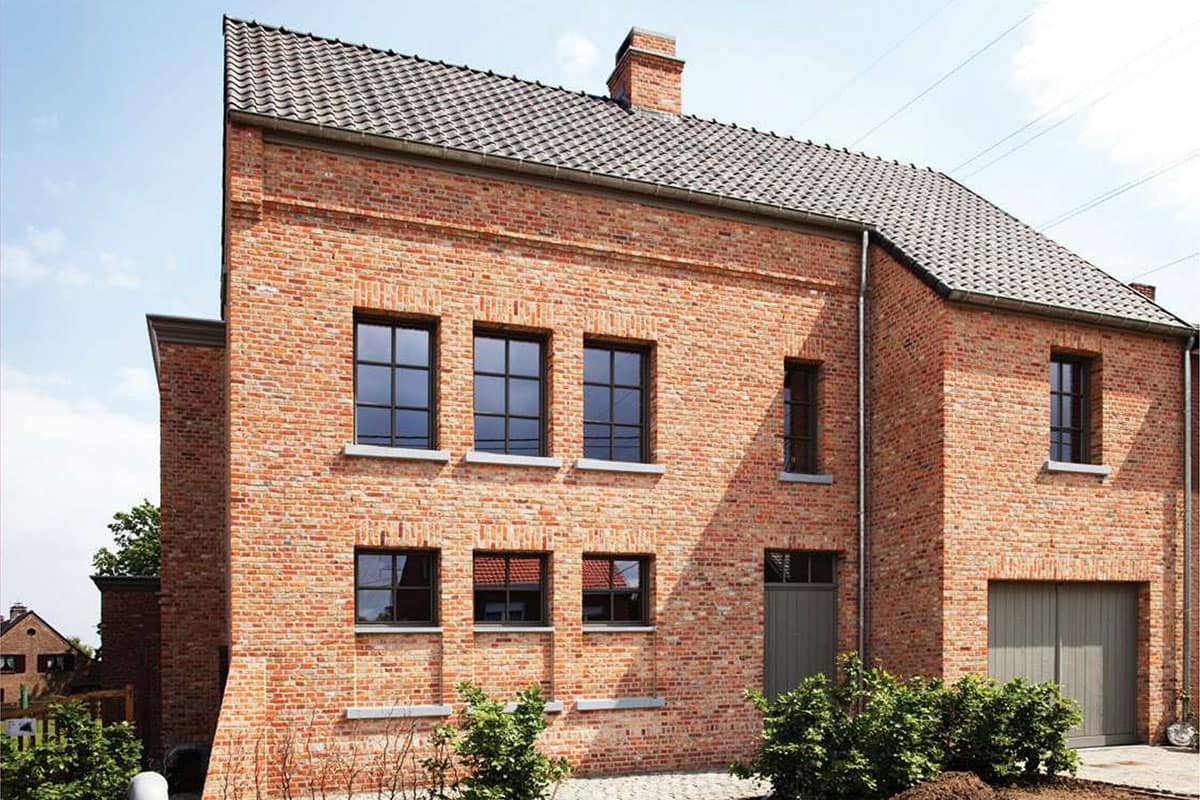

Reynaers SlimLine 38 windows and doors have been designed to replicate the ‘steel look’ used in many traditional UK homes.

The SL 38 offers the highest levels of performance with excellent levels of security, weather resistance and thermal insulation.

With its slender look, SL 38 is the perfect window and door for modern homes as well as for the renovation of steel-frames, where respecting the original design is of utmost importance.

  • Features
  • Downloads
  • Technical Information
  • Opening Options

Performance

In combination with its superior insulation capabilities, the system provides the perfect harmony between durable material, clean design and reliability needed for your home. Renovation of steel-framed windows with modern, slim frame aluminium windows can also enhance the security, noise and energy efficiency of your property.

  • Ultra slim frame
  • Industry leading maximum sizes
  • Double- and triple-glazed options
  • Easy clean egress hinge option
  • Strong and durable
  • Secured by Design accreditation
  • U-value as low as 1.4W/m2K
  • Classic Heritage style window

Style Options

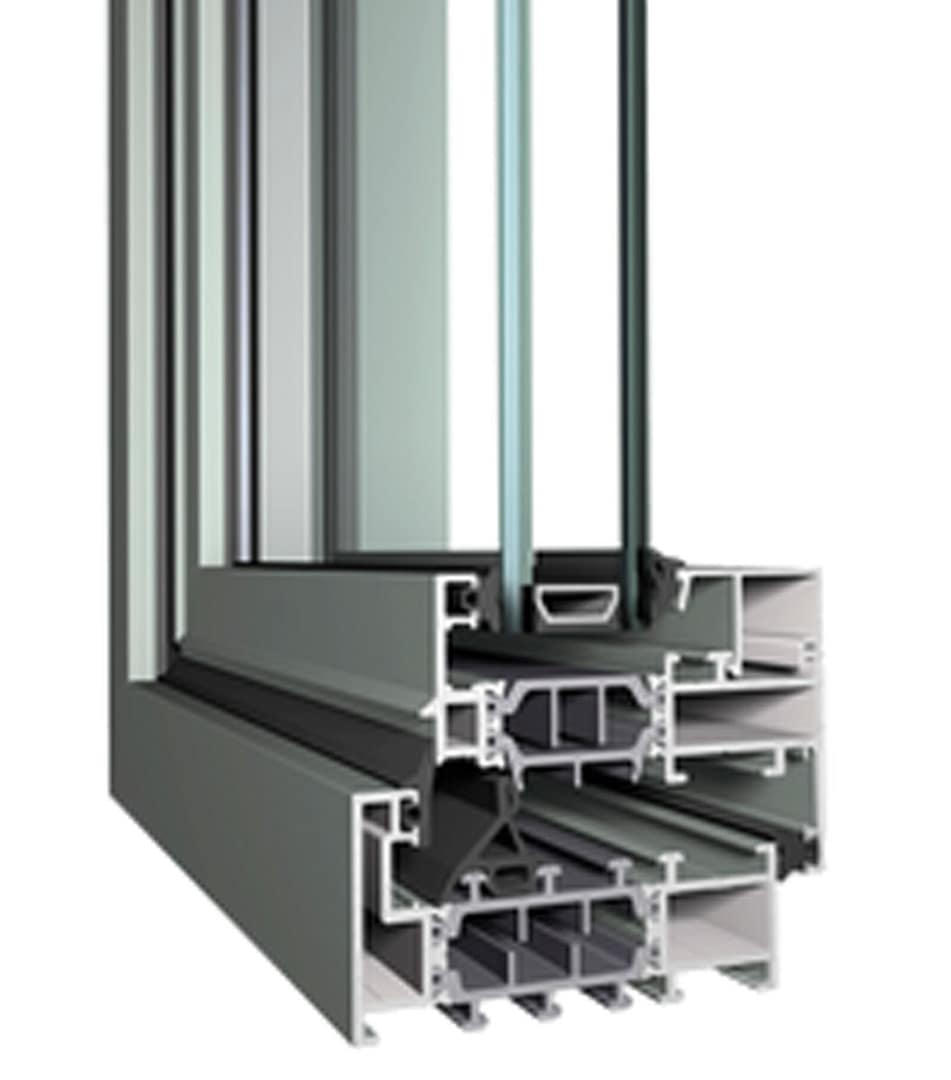

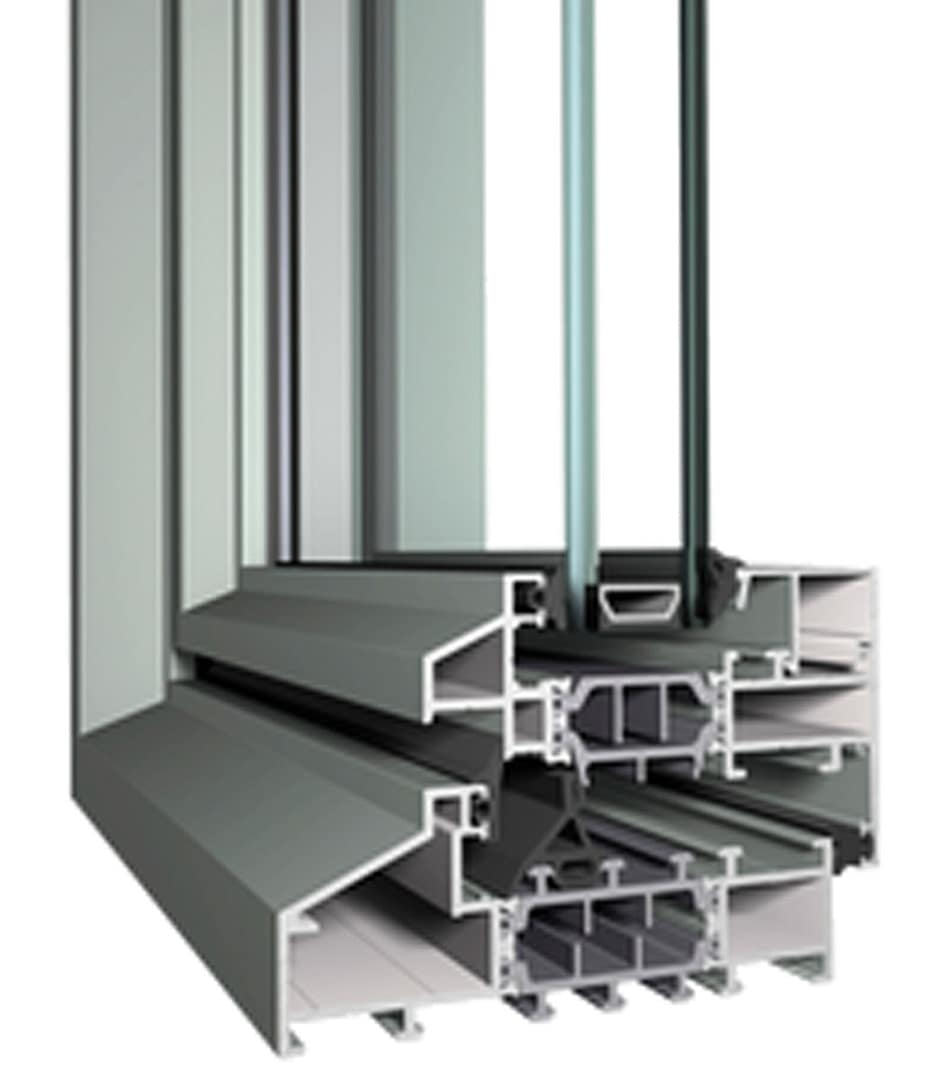

The SL 38 system is available in 3 different minimalistic design variants, Classic, Ferro and Cubic, to perfectly match the requirements of your project. The windows and doors can additionally be provided with double and triple glazing without losing the ultra-slim look.

Brochure
Sections

* Sections provided are typical examples of this window system, there are many options available, for details of the exact sections used in your quote, please request the CAD detail from us when discussing your quote.

Properties

Min. Visible width frame: inward opening
33.5 mm
Min. Visible width vent: inward opening
23 mm
Min. Visible width frame-vent: inward opening
67 mm
Min. Visible width frame: outward opening
29 mm
Min. Visible width frame-vent: outward opening
80 mm
Min. Visible width T-profile
48 mm
Max. height vent
2800 mm
Max. width vent
1200 mm
Max. weight element
170 kg
Overall system depth frame
99 mm
Overall system depth vent
86 mm
Rebate height
13.5 mm
Min. Glass thickness
16 mm
Max. Glass thickness
55 mm
Min. Glass thickness vent
16 mm
Max. Glass thickness vent
55 mm
Glazing method
Dry glazing with EPDM or neutral silicones
Thermal break
Fibreglass Reinforced Polyamide Strips

Performance

Comfort

Reynaers CS77 Windows and Doors
Air tightness max. test pressure
4 (600 Pa)
Reynaers CS77 Windows and Doors
Water tightness
9A (600 Pa)
Reynaers CS77 Windows and Doors
Wind load resistance
C4 (1600 Pa)
Reynaers SL38 Aluminium Windows
Acoustic performance
45 dB

Safety

Reynaers CS77 Windows and Doors
Burglar resistance
RC2/WK2

Energy

Thermal insulation
(Uf)1,9 W/m²K

The technical information shown above is based on typical tests, the size of the windows, glass choice and profile choice can all affect the achieved rating, please ask us if you are unsure what your actual windows achieve, we are able to provide a variety of reports.

Inward opening

Reynaers CS77 Windows and Doors
Reynaers CS77 Windows and Doors
Reynaers CS77 Windows and Doors

Outward opening

Reynaers CS77 Windows and Doors
Reynaers CS77 Windows and Doors

Other

Reynaers CS77 Windows and Doors
Reynaers SL38 Aluminium Windows
