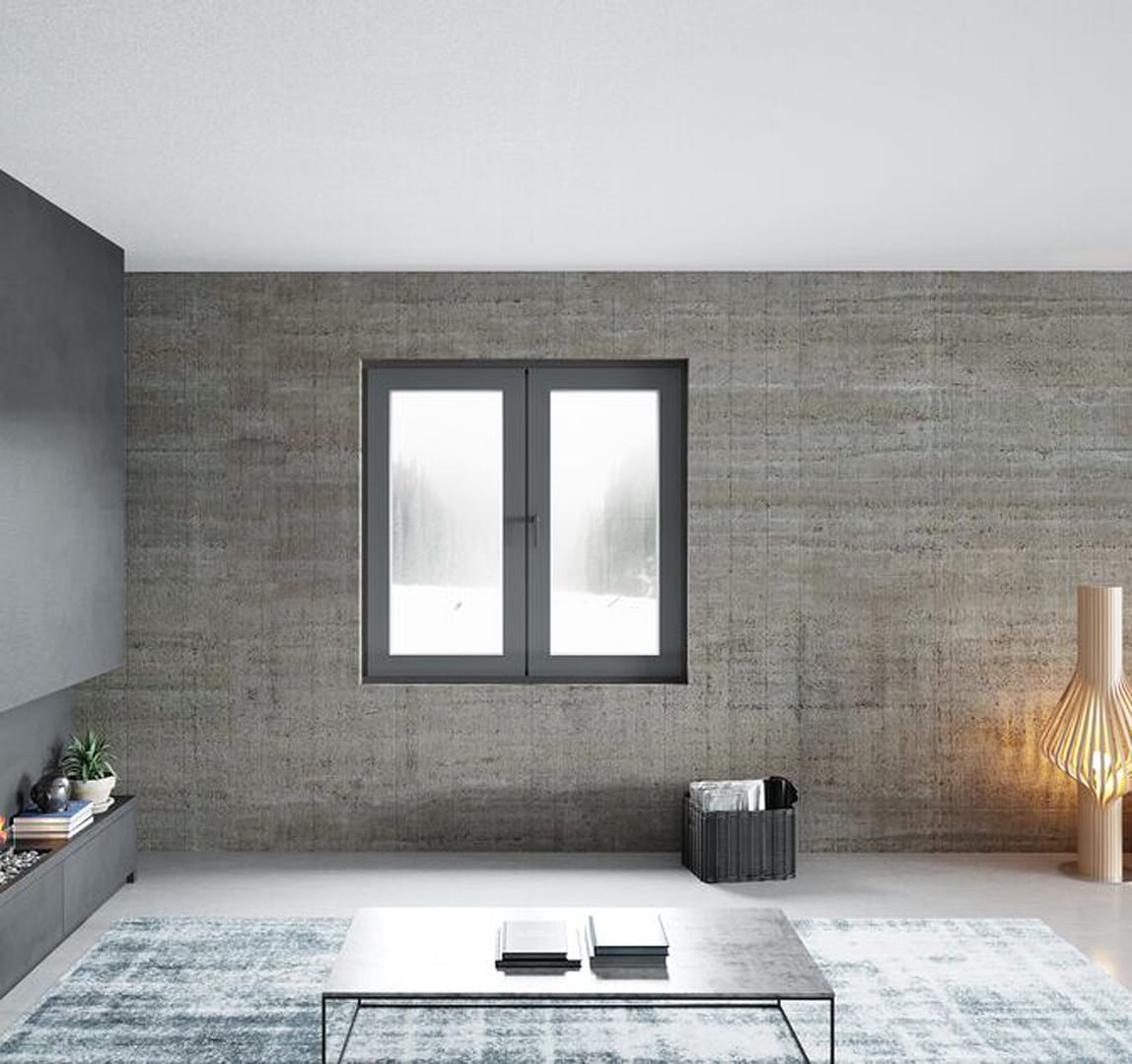

Reynaers MasterLine 10 Windows

MasterLine 10 aluminium windows fit the building trends of today and tomorrow. The Passive House-certified solution is ideal for low-energy building, as it combines maximum daylight access, optimal performance, and safety without compromise.

Design

  • Functional – The standard product offers a Functional design, which means it will fit any building style.
  • Renaissance – This product has been developed to mimic the look of wooden windows, and the Renaissance variant replicates the curves and steps of milled wood detailing.
  • Deco – This product has been developed to mimic the look of wooden windows, and the Deco variant replicates the more modern chamfer details.

Style Options

The MasterLine window and door system is available in three different style options. Whether you prefer the more traditional Renaissance style or the very clean and contemporary lines of the functional style, MasterLine has the aesthetics to complement almost any home.

Brochure
Sections

* Sections provided are typical examples of this window system, there are many options available, for details of the exact sections used in your quote, please request the CAD detail from us when discussing your quote.

Properties

Min. frame width (inward opening)
60 mm
Min. vent width (inward opening)
37 mm
Min. frame-vent width (inward opening)
104 mm
Min. frame width (outward opening)
27 mm
Min. vent width (outward opening)
113 mm
Min. frame-vent width (outward opening)
140 mm
Min. width T-profile
97 mm
Depth Vent
107 mm
Depth frame-vent
107 mm
Min. height of element
654 mm
Max. height of element
2854 mm
Min. width of element
604 mm
Max. width of element
1254 mm
Min. height of vent
600 mm
Max. height of vent
2800 mm
Min. width of vent
550 mm
Max. width of vent
1200 mm
Max. weight of vent
200 kg
Max. weight of glass
1200 kg
Rebate height
27 mm
Glazing method
Dry glazing, Siliconized glazing, Internal glazing, Glazing bead
Min. glass thickness – frame/element
20 mm
Max. glass thickness – frame/element
78 mm
Min. glass thickness – vent
30 mm
Max. glass thickness – vent
88 mm

Performance

Comfort

Reynaers CS77 Windows and Doors
Air tightness
Class 4 (600Pa)
Reynaers CS77 Windows and Doors
Water tightness
Class E900 (900Pa)
Reynaers CS77 Windows and Doors
Wind load resistance
Class C4 (1600Pa)
Reynaers SL38 Aluminium Windows
Acoustics – Rw(C;Ctr)
TuTi: 46(-1;-4) dB DC: 44(-2;-4) dB

Safety

Reynaers CS77 Windows and Doors
Burglar resistance
RC2/WK2 – RC3/WK3

Energy

Thermal insulation (Uw)
0.8 W/m²K

The technical information shown above is based on typical tests, the size of the windows, glass choice and profile choice can all affect the achieved rating, please ask us if you are unsure what your actual windows achieve, we are able to provide a variety of reports.
