Senior Ali FOLD Door

The Ali FOLD door is a stylish, high-performance range of folding aluminium doors. Suitable for both commercial and domestic use, Ali FOLD doors have a polyamide thermal break to give impressive thermal efficiency and are fully compatible with all Senior windows and curtain walling. For maximum daylight a heavy-duty version allows leaf sizes of 1300mm x 2400mm with a maximum leaf weight of 125Kg.

Available in an almost unlimited range of colours and finishes both inside and out, Ali FOLD doors have narrow sight lines, are available in a choice of configurations and sizes, and are simple to fabricate using existing tooling.

Further thermal enhancement is available and with a life expectancy in excess of 40 years, the Ali FOLD door range is 100 % recyclable and will easily exceed current and meet future building regulations.

Features
Downloads
Technical Information
Opening Options

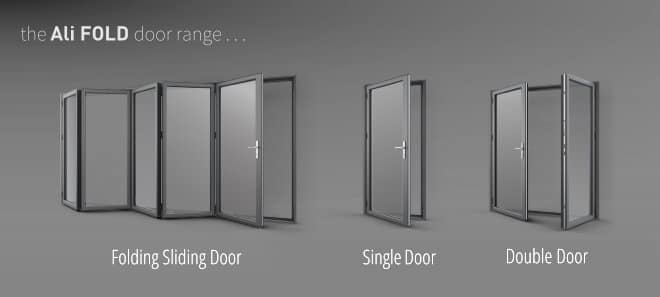

Available Configurations

Ali FOLD Single Door (Open out or open in)
Ali FOLD Double Door (Open out or open in)
Ali FOLD Folding Sliding Door (Open out or Open in)
Low Threshold Non-Rebate (Open out or Open in)
Floating Mullion option available
Heavy Duty option available

Features

Tested to PAS24:2012 Enhanced Security, BS6375 Part 1 Weather, BS6375 Part 2 Operation & Strength, BS6375 Part 3 Annex A. Exact performance varies depending on the configuration. Please contact our Technical Department for further information
Able to receive double or triple glazing up to 48mm for maximum thermal and acoustic performance
U-Values as low as 1.0 W/m²K when calculated as a CEN Standard door

* Sections provided are typical examples of this window system, there are many options available, for details of the exact sections used in your quote, please request the CAD detail from us when discussing your quote.

Properties

Performance

The technical information shown above is based on typical tests, the size of the windows, glass choice and profile choice can all affect the achieved rating, please ask us if you are unsure what your actual windows achieve, we are able to provide a variety of reports.
