Reynaers Hi-Finity Sliding Doors

The Hi-Finity sliding aluminium patio door is the epitome of modern design, combining the ultimate in contemporary aesthetics with outstanding performance.

This state-of-the-art structurally glazed slimline aluminium patio door offers the possibility of floor-to-ceiling and wall-to-wall glass, an ergonomically designed handle and a concealed locking system. For the discerning householder or architect who wants the very latest in contemporary design and ultimate performance, the Hi-Finity sliding aluminium patio door sets a new benchmark of excellence.

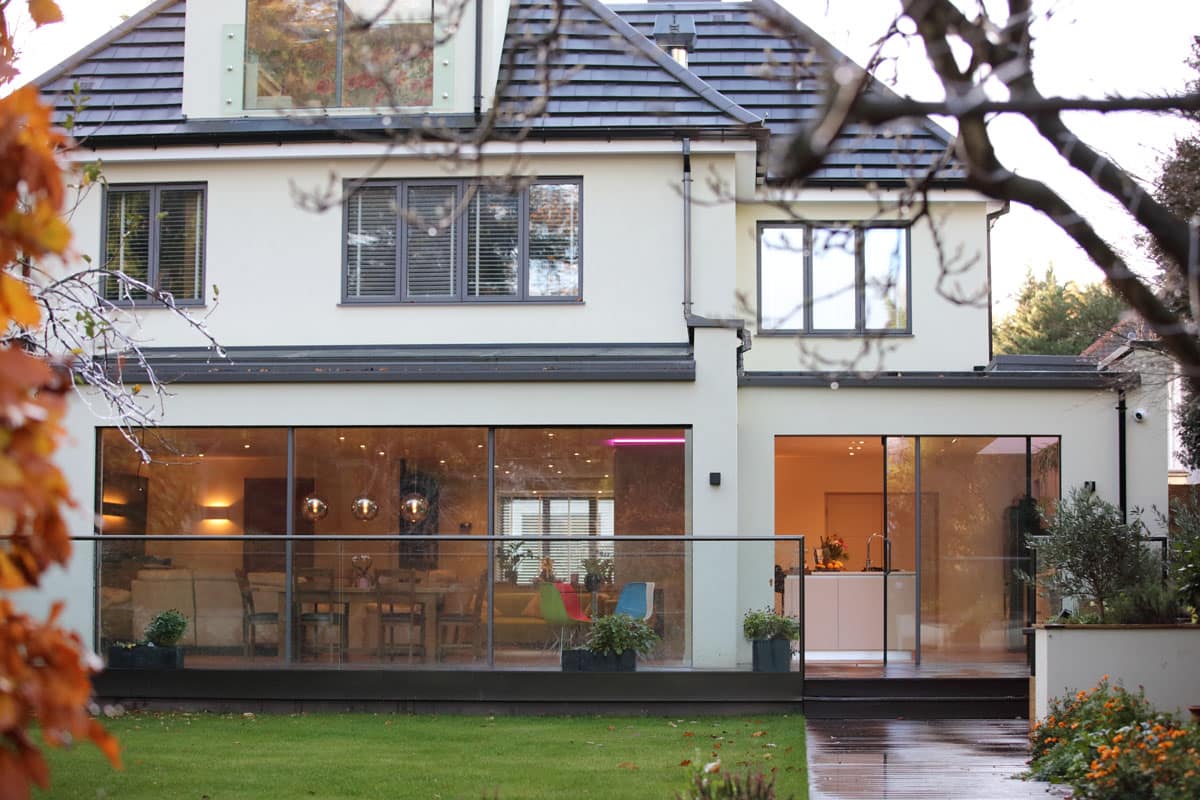

Our slimline aluminium sliding doors can achieve industry-leading sizes, which can make for an amazing feature in your home. The large glass panes with their ultra-slim frame profile will allow for a completely unobstructed view into the garden. The sleek slimline design will suit any contemporary or modern property, leaving a long-lasting impression on your guests.

Equally at home in a modern grand design as in a more traditional property, our sliding aluminium patio doors will add character and style to any room. Hi-Finity doors are structurally glazed, meaning the structure of the door is in the glass and not the surrounding framework. This means that this door is designed so that the ultra-slim frame can be concealed behind the surrounding wall, making wall-to-wall and floor-to-ceiling glass a real possibility.

As well as offering the ultimate in contemporary design and cutting-edge performance, our Hi-Finity sliding aluminium doors will become a feature of your property as well as opening your home to glorious panoramic views.

  • Features
  • Downloads
  • Technical Information
  • Opening Options

Performance

Automatic locking is a standard feature, and fully automated operation is an option, allowing you to open and close the doors at the push of a button. Of course, the Hi-Finity sliding aluminium patio door also offers exceptional levels of thermal insulation, weather resistance, noise reduction and security.

  • Automatic locking
  • Double- and triple-glazed options
  • Industry leading maximum sizes
  • Ultra slim frame
  • Strong and durable
  • Corner Solution possible
  • U-value as low as 1.0W/m2K

Style Options

This versatile sliding door system can be specified to meet the needs of your specific new build or renovation project. With a choice of frame profiles, double or triple glazing options and an industry-leading maximum height at 3.5m, the Hi-Finity door is crafted to work seamlessly with any design concept.

Brochure
Sections

* Sections provided are typical examples of this window system, there are many options available, for details of the exact sections used in your quote, please request the CAD detail from us when discussing your quote.

Properties

Min. Visible width T-profile
35 mm
Visible width meeting section
35 mm
Max. height vent
4000 mm
Max. width vent
3500 mm
Max. weight element
1200 kg
Overall system depth frame
148 mm
Overall system depth vent
44 mm
Visible height vent
8 mm
Visible height meeting section 4 doors
67 mm
Min. Glass thickness
36 mm
Max. Glass thickness
54 mm
Glazing method
Dry glazing with EPDM or neutral silicones
Thermal break
Fibreglass Reinforced Polyamide Strips

Performance

Comfort

Reynaers CS77 Windows and Doors
Air tightness max. test pressure
4 (600 Pa)
Reynaers CS77 Windows and Doors
Water tightness
E750 (750 Pa)
Reynaers CS77 Windows and Doors
Wind load resistance
C5 (2000 Pa)
Reynaers SL38 Aluminium Windows
Acoustic performance
Rw(C;Ctr) = 43 (-1;-3) dB

Safety

Reynaers CS77 Windows and Doors
Burglar resistance
RC2/WK2

Energy

Thermal insulation (Uf)
1.4 W/m²K

The technical information shown above is based on typical tests, the size of the windows, glass choice and profile choice can all affect the achieved rating, please ask us if you are unsure what your actual windows achieve, we are able to provide a variety of reports.

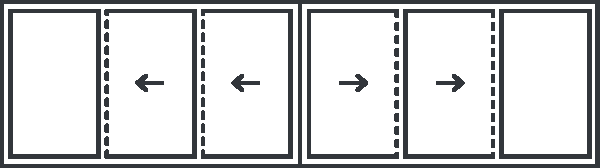

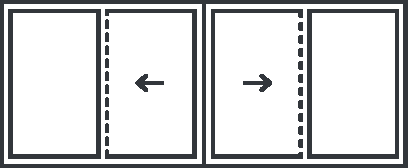

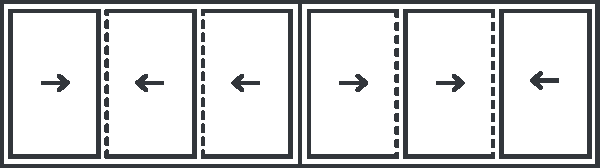

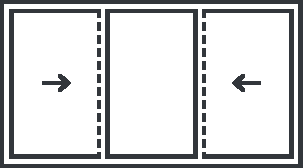

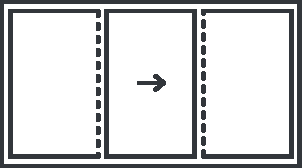

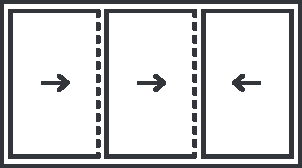

Opening options

Reynaers Hi-Finity Sliding Doors
Reynaers Hi-Finity Sliding Doors
Reynaers Hi-Finity Sliding Doors
Reynaers Hi-Finity Sliding Doors
Reynaers Hi-Finity Sliding Doors
Reynaers Hi-Finity Sliding Doors
Reynaers Hi-Finity Sliding Doors
Reynaers Hi-Finity Sliding Doors
Reynaers Hi-Finity Sliding Doors
Reynaers Hi-Finity Sliding Doors
