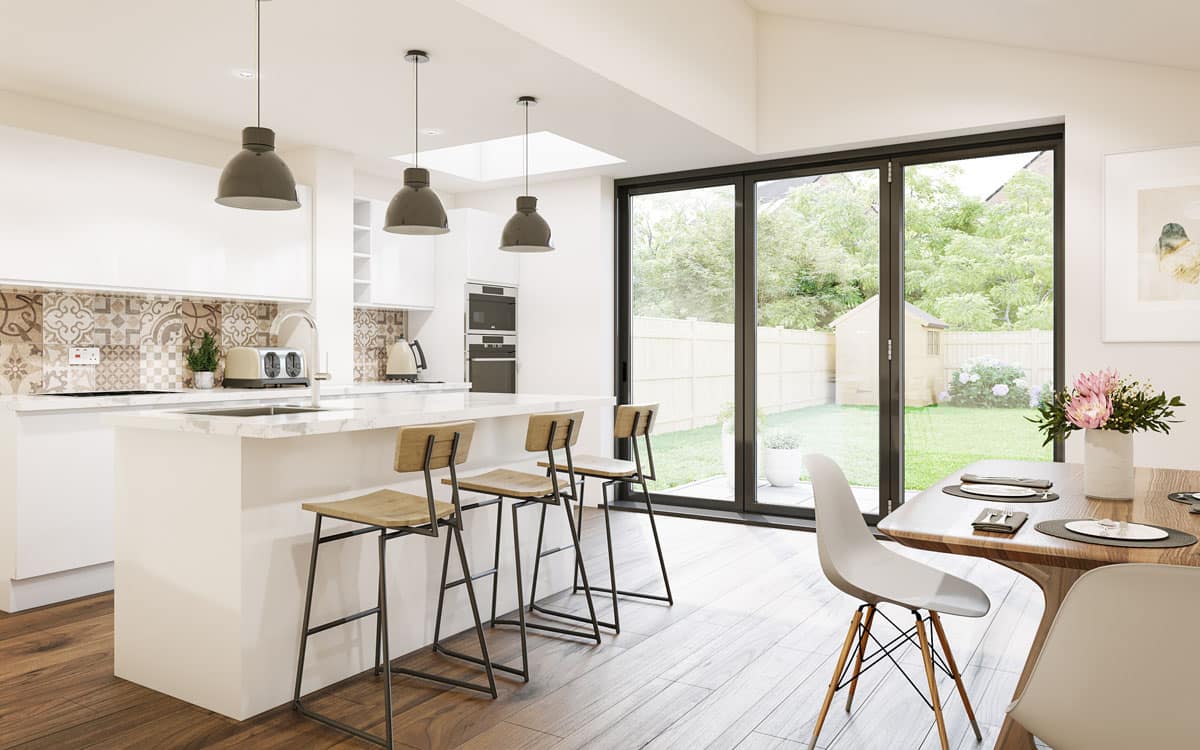

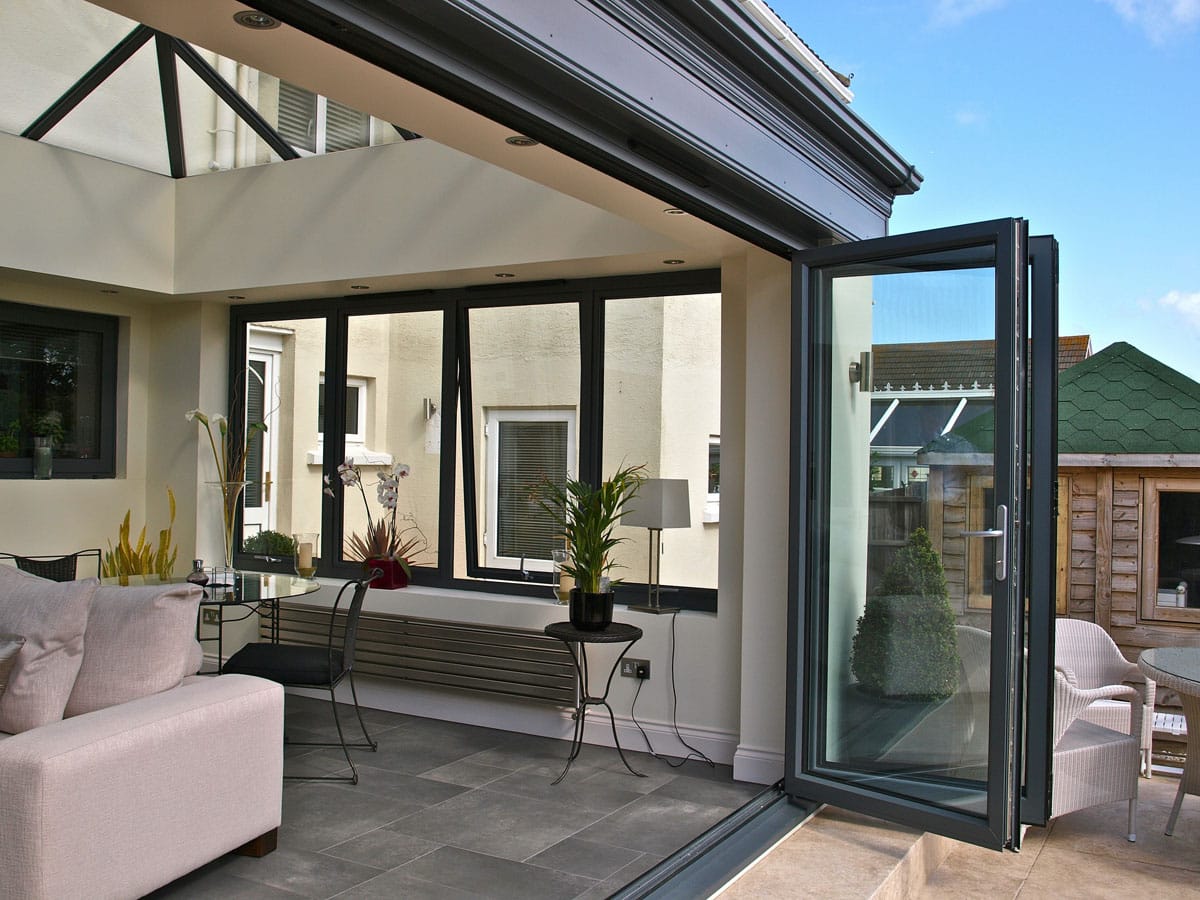

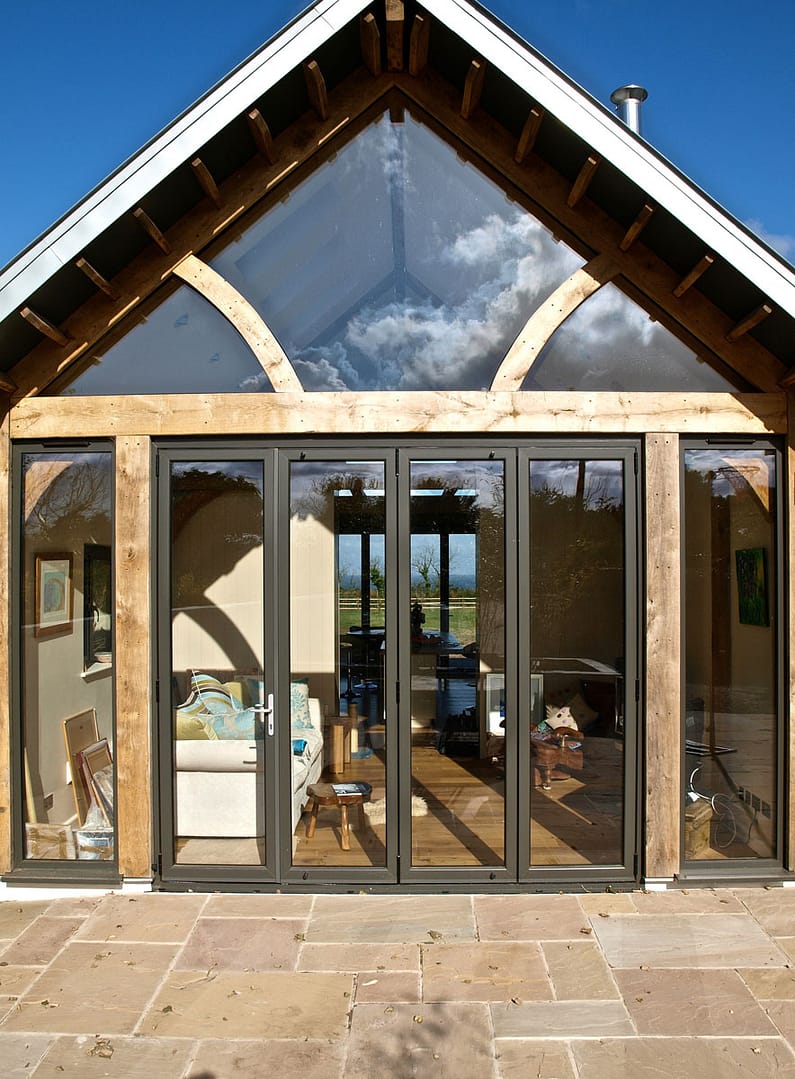

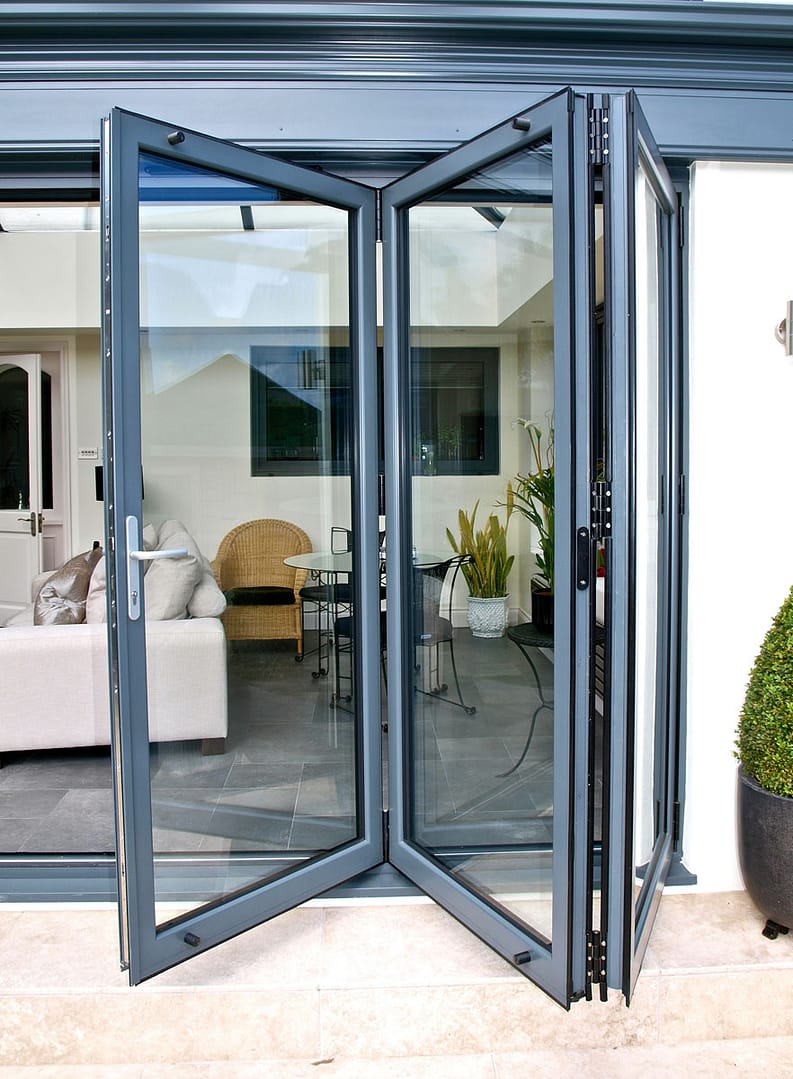

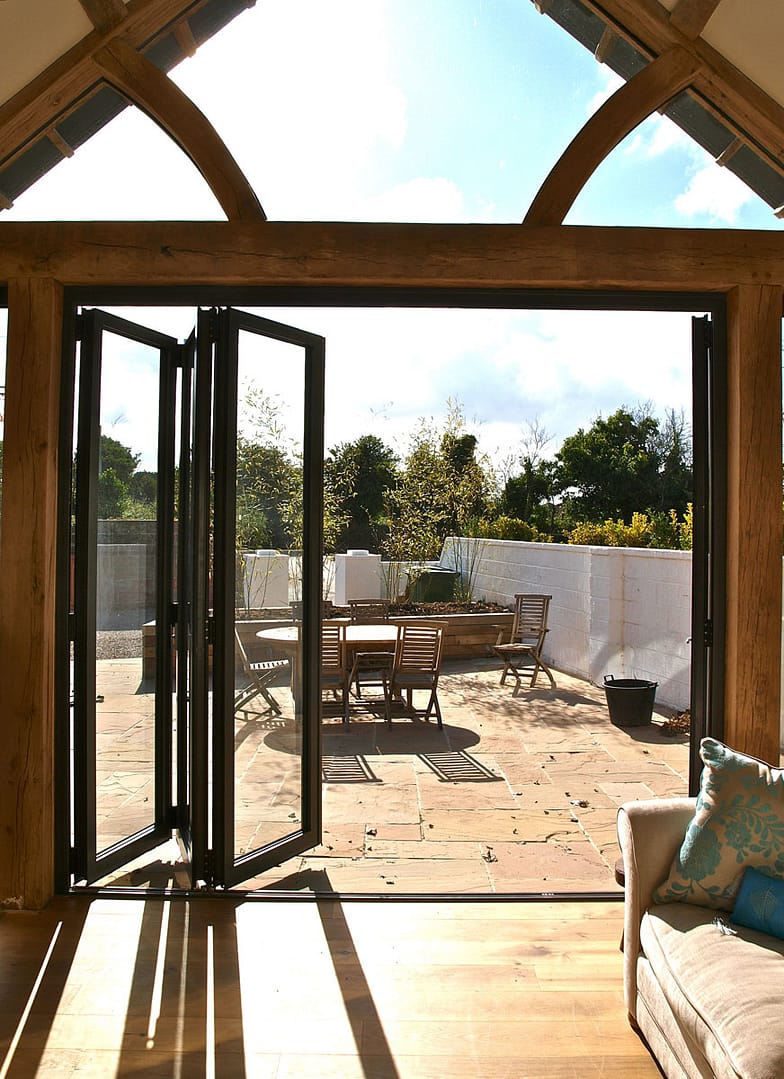

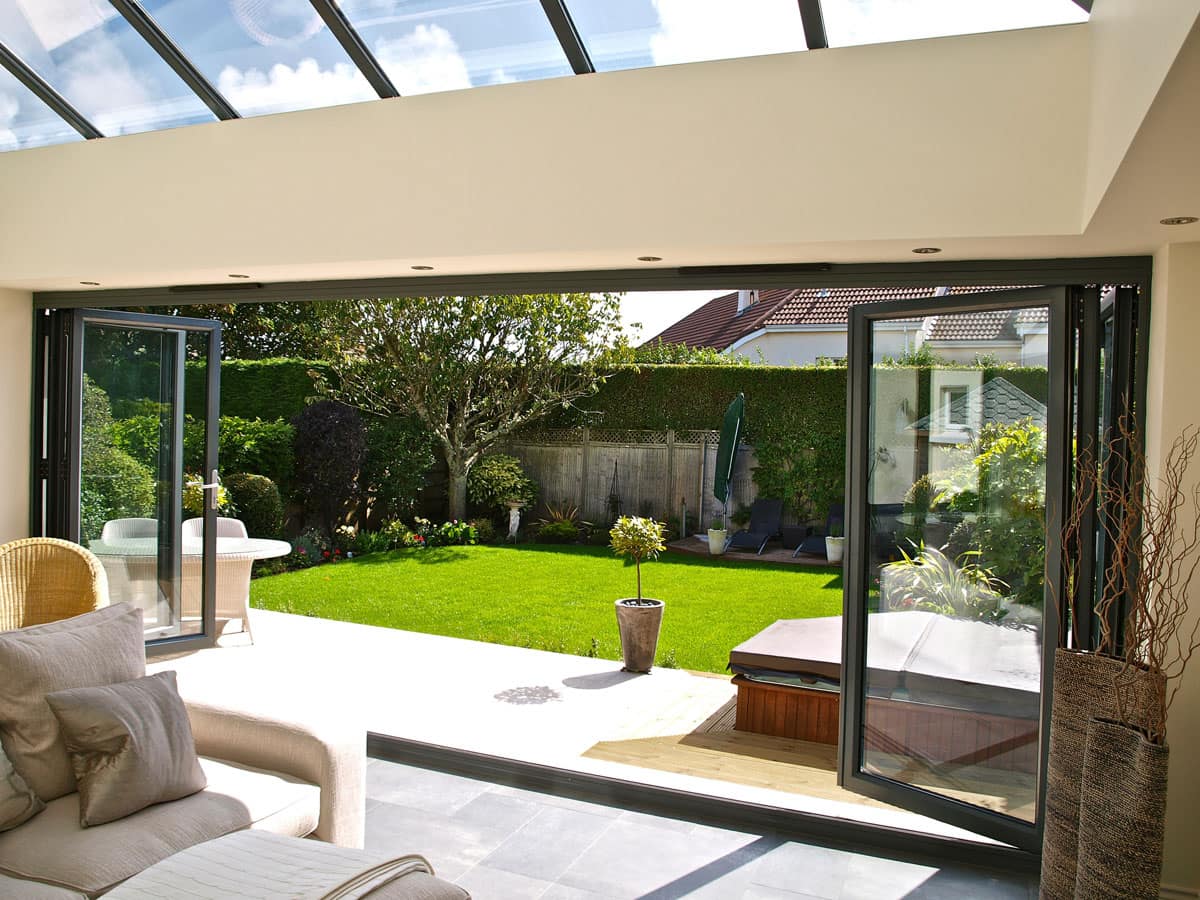

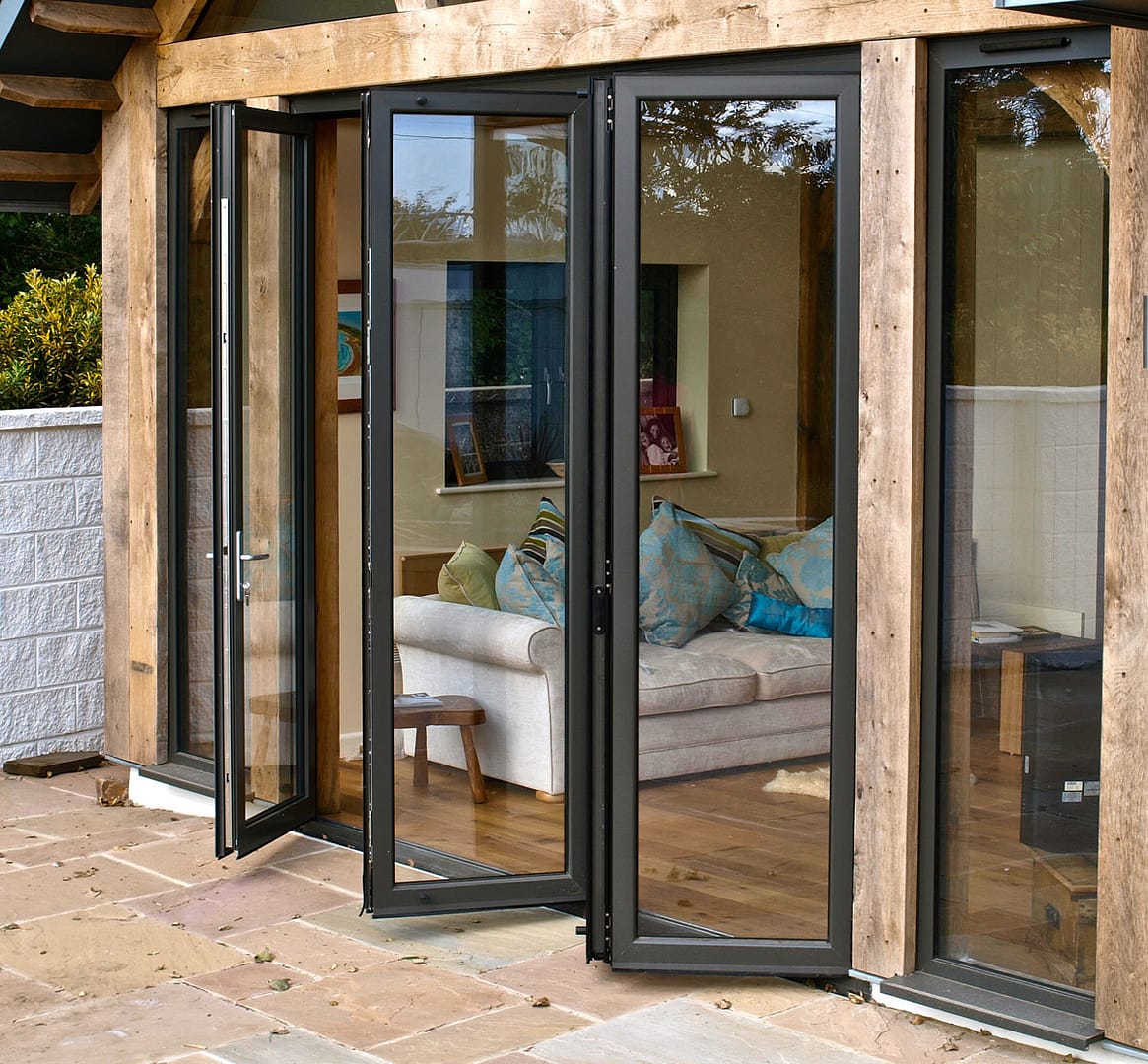

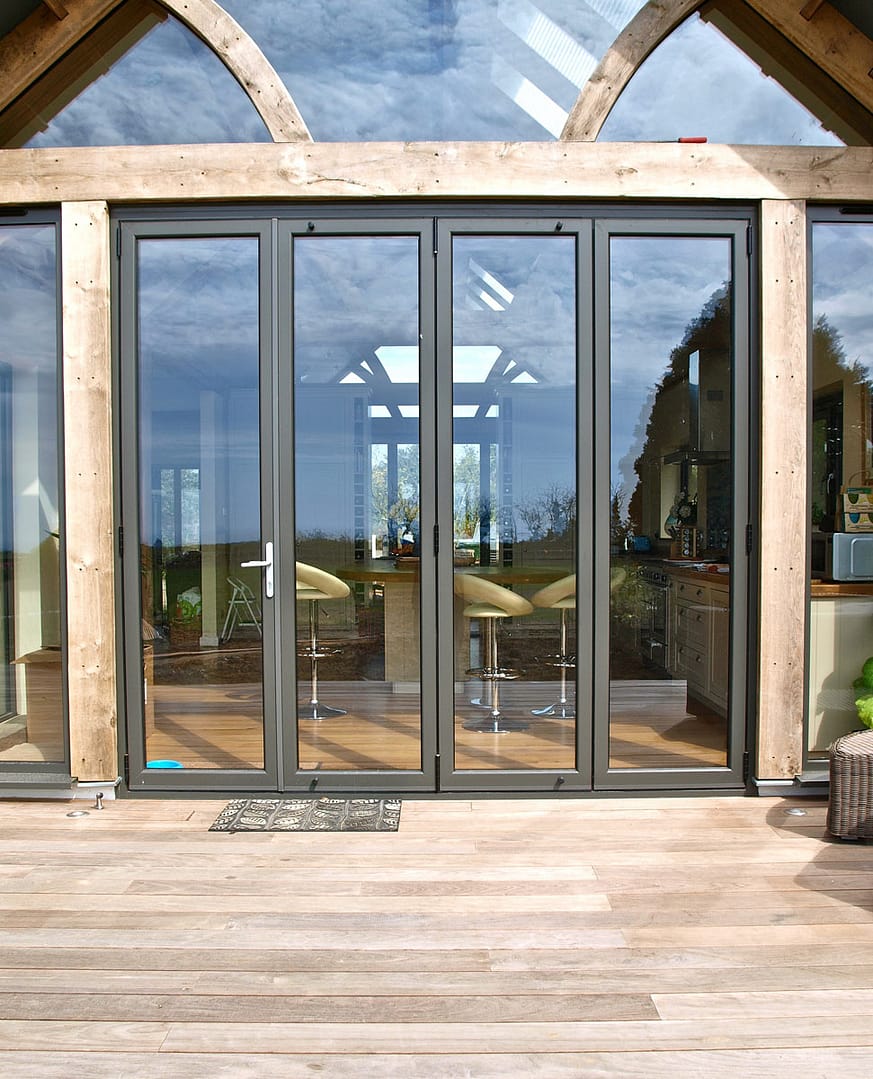

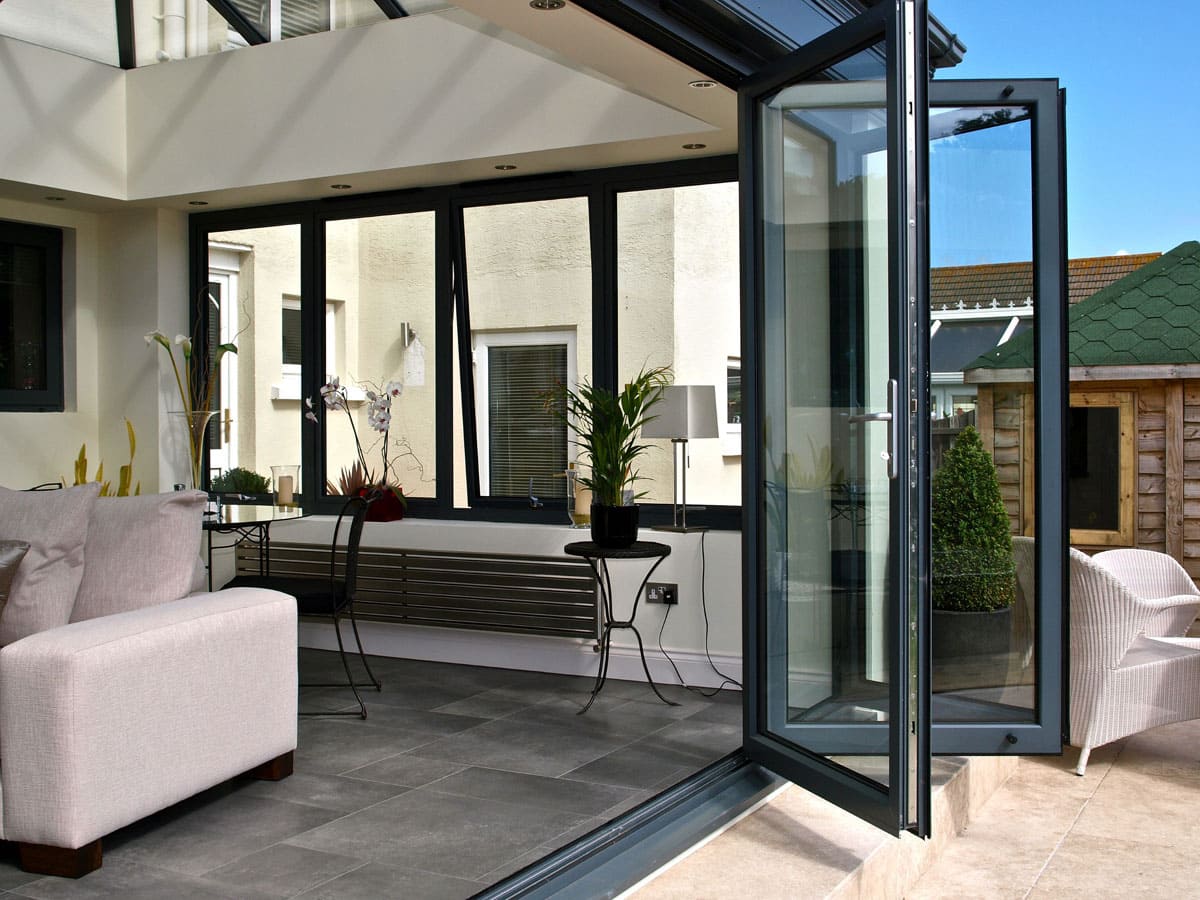

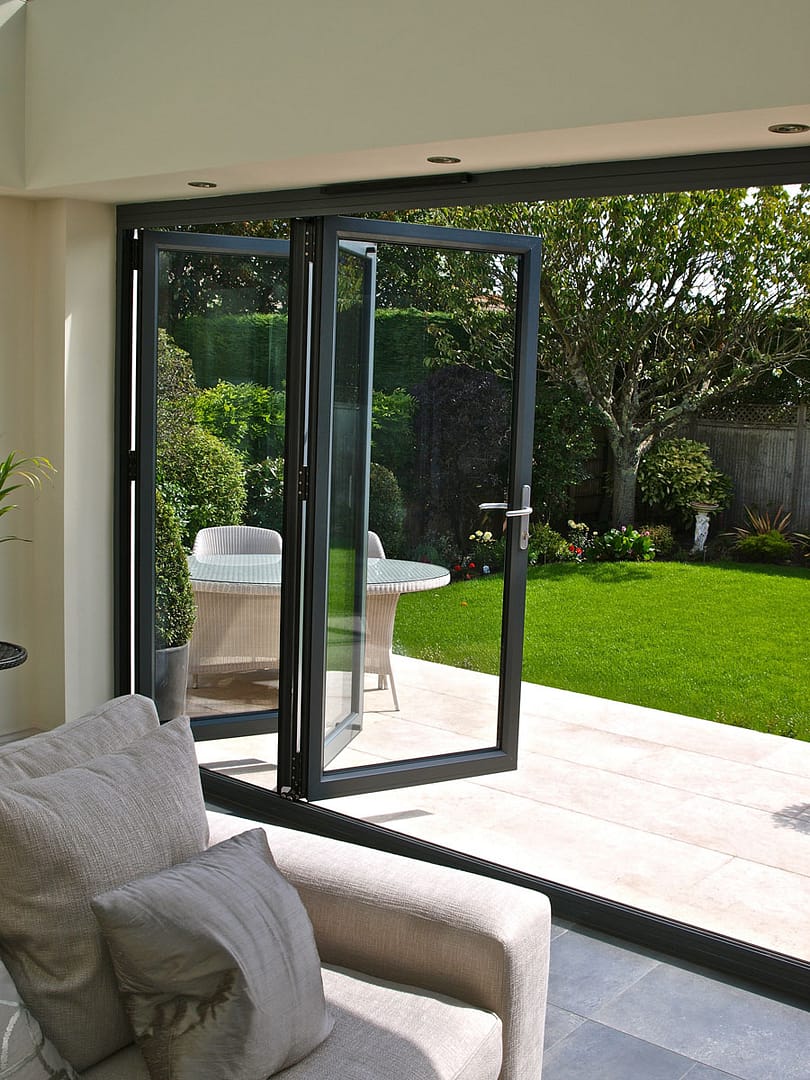

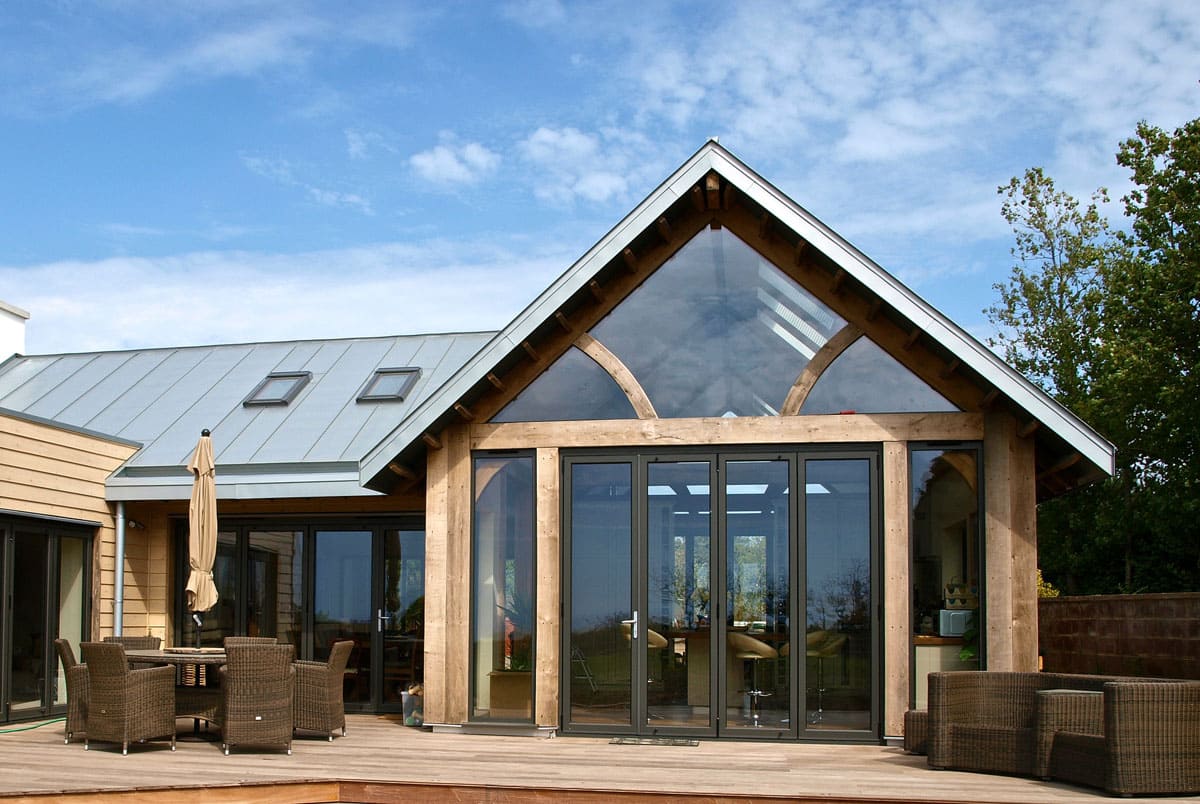

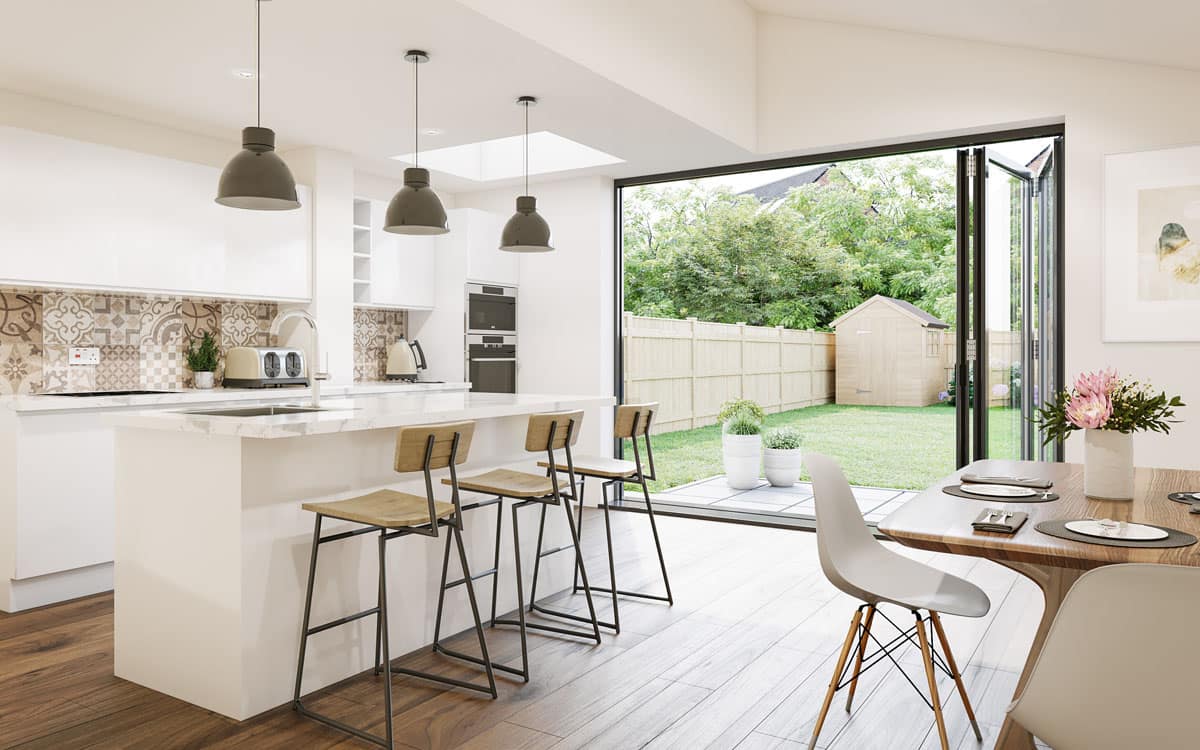

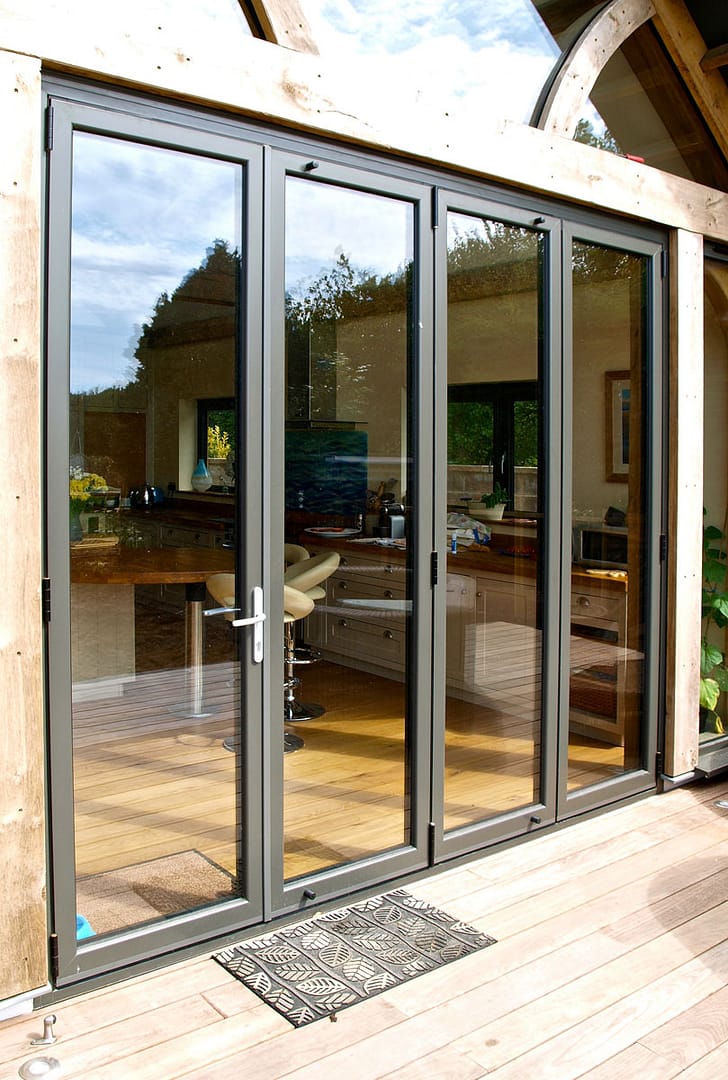

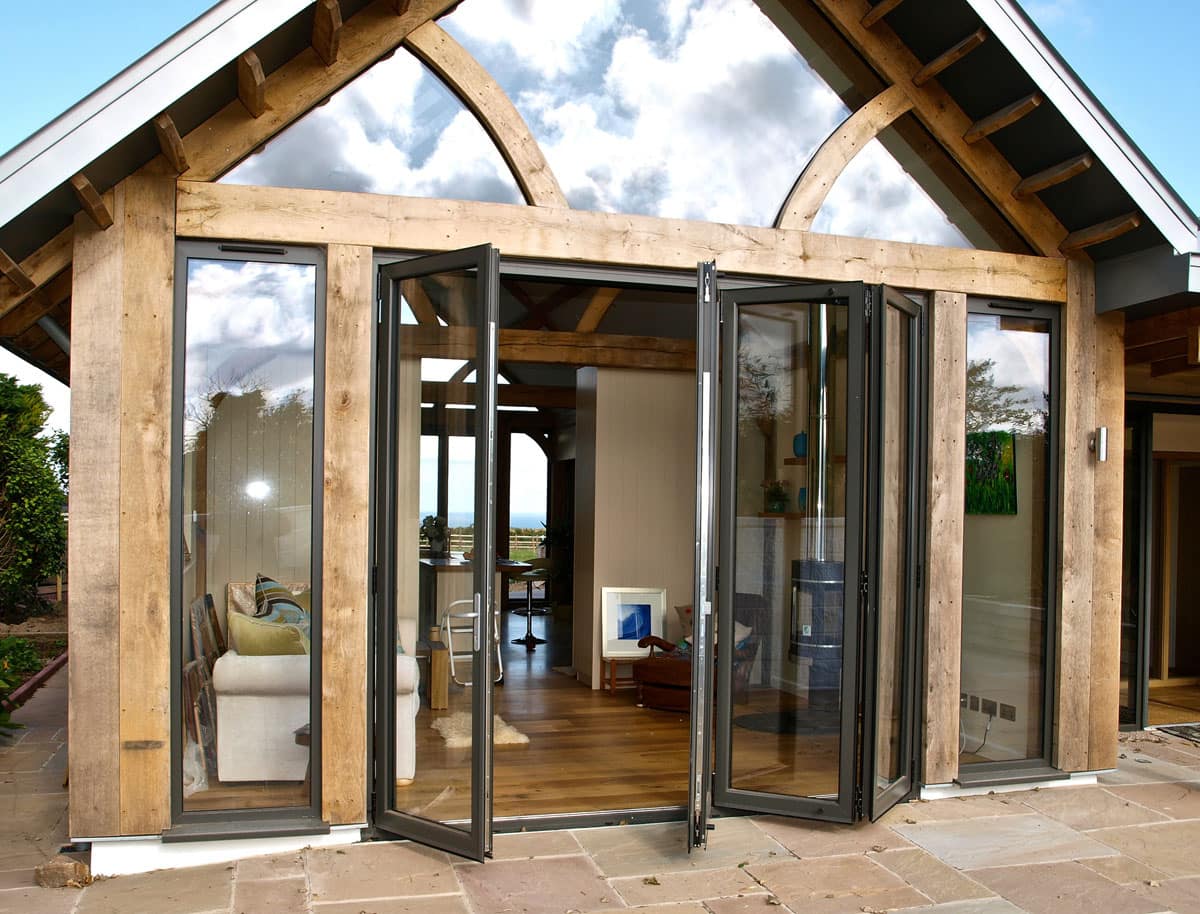

ALuK Optio BSF70 HI Bi-fold Door

Welcoming, stunning, practical.

An intelligent combination of form and function, our highly versatile and market-leading Bi-fold sliding door system gives you maximum control over the style and operation of the doors.

Multiple panels can be added to accommodate the design specifications of your building, with the option to open in or out as required. The system also boasts a unique flush line pop-out handle that allows for square flush stacking panels when doors are fully open.

  • Features
  • Downloads
  • Technical Information
  • Opening Options

Design features

  • Certified under the Secured By Design scheme
  • Tested to PAS 24

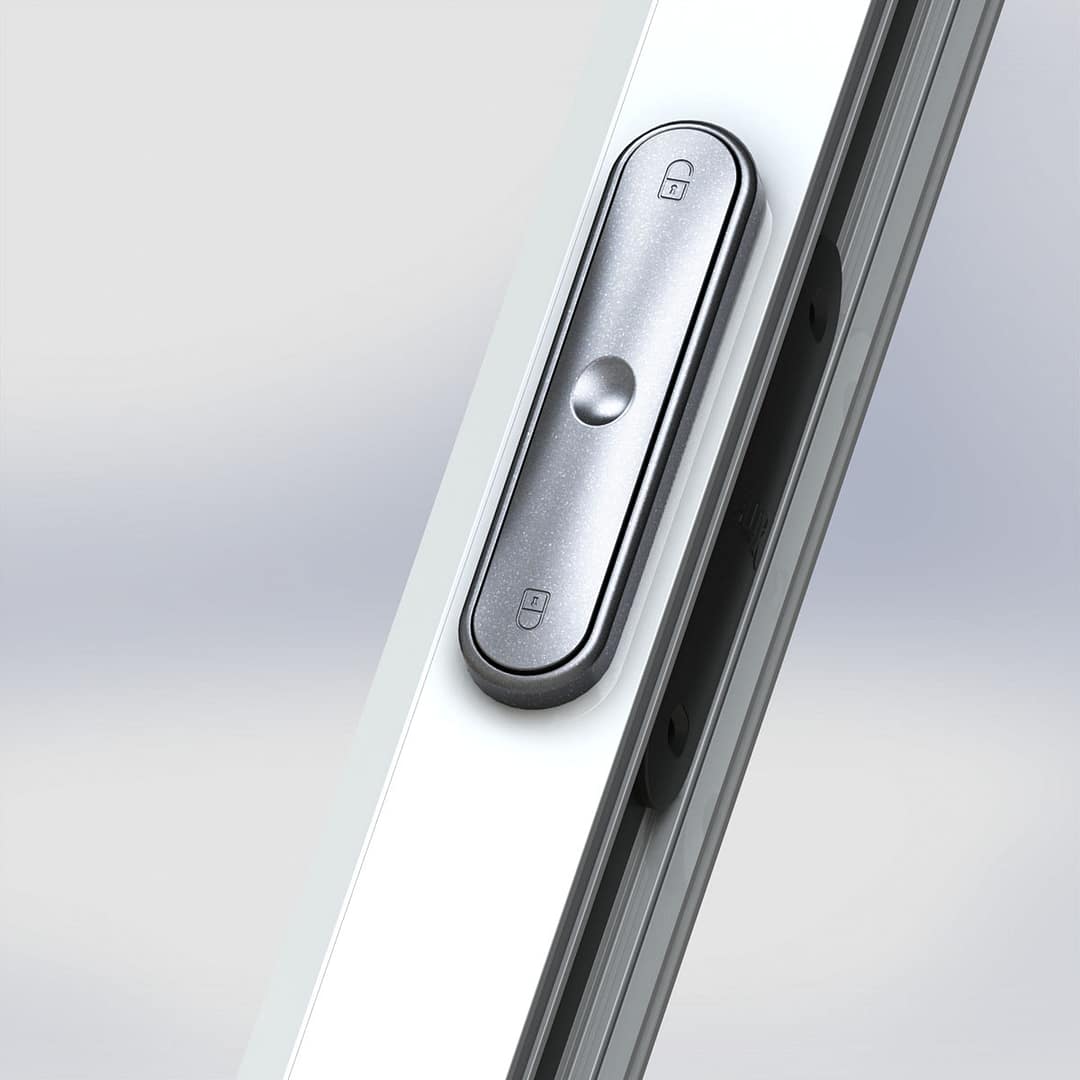

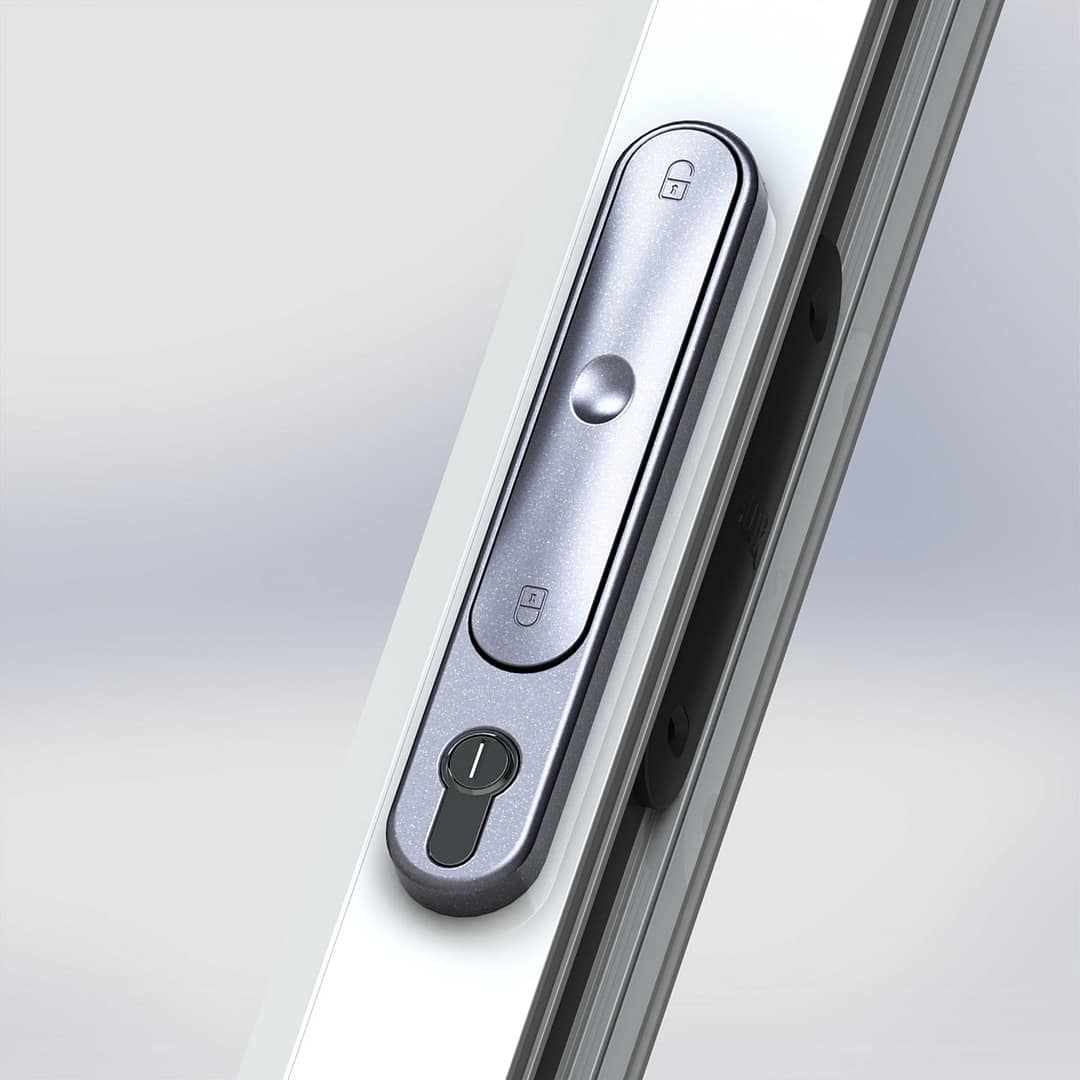

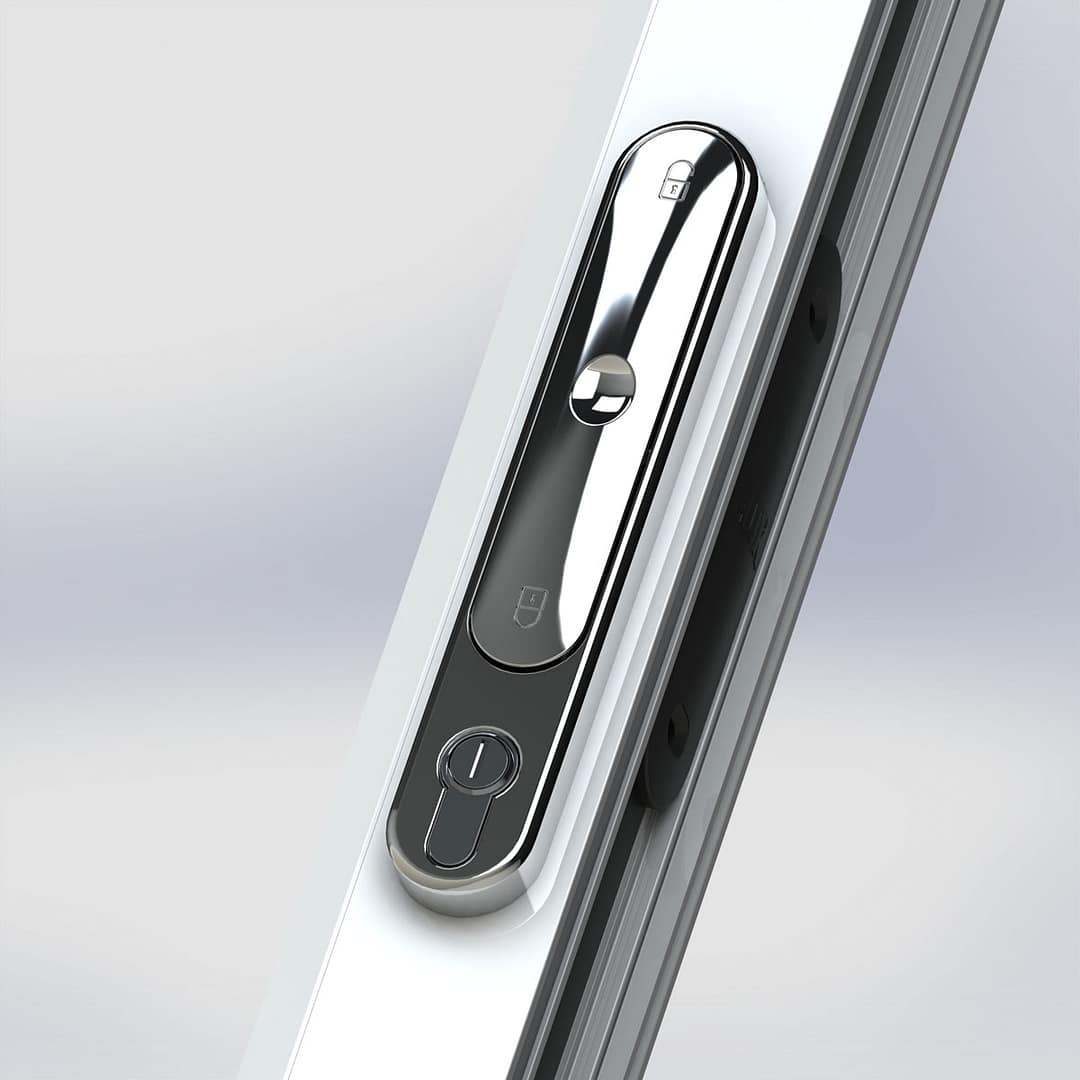

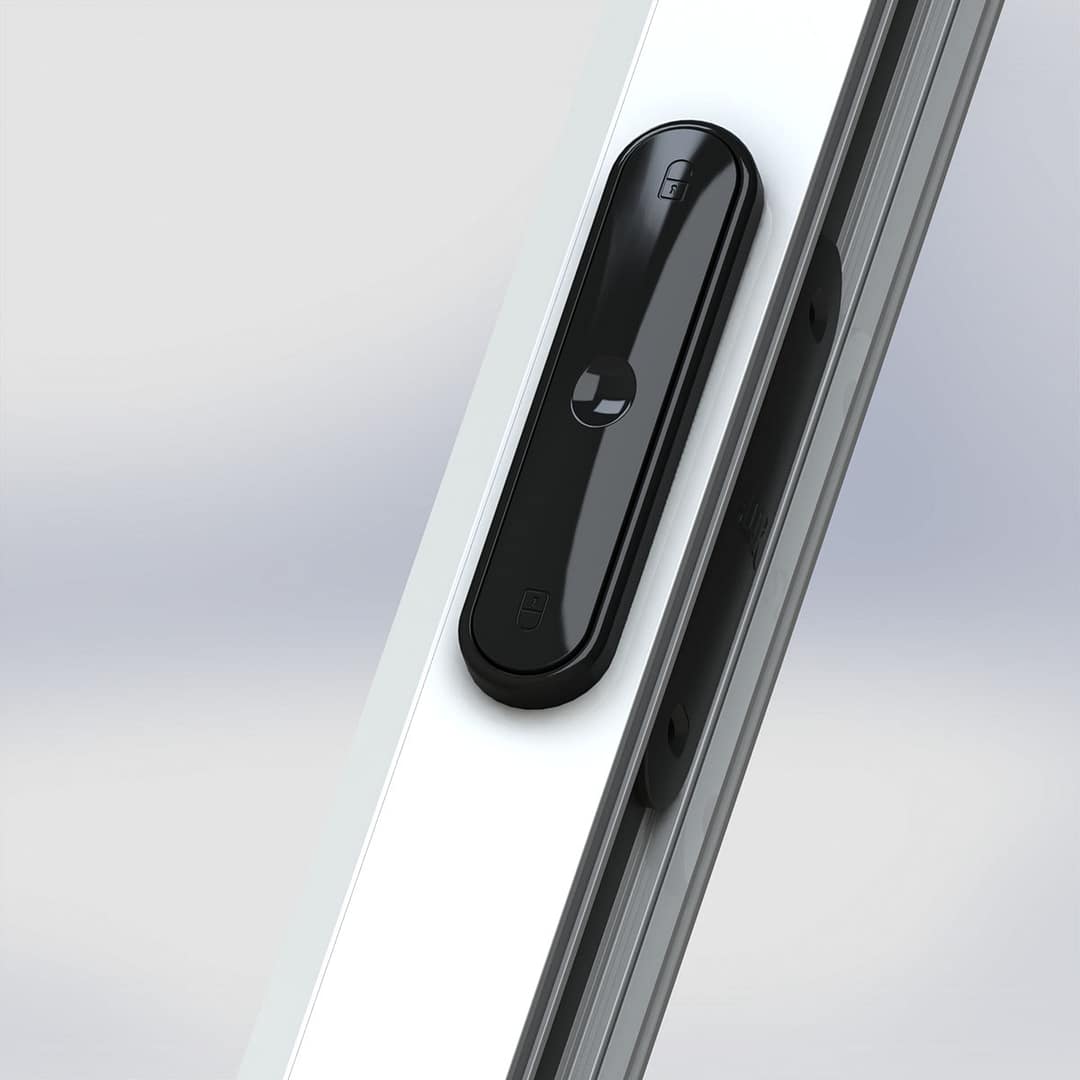

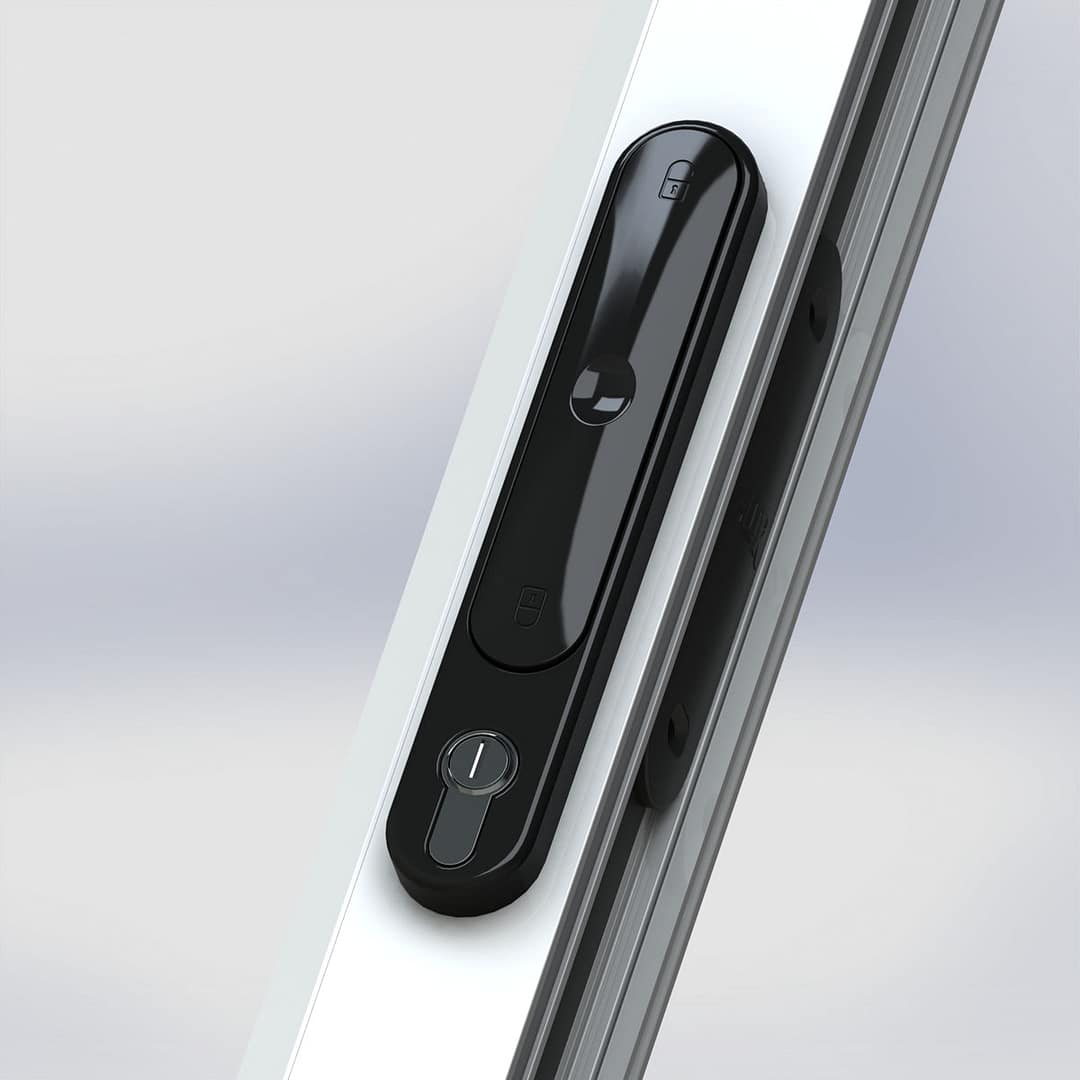

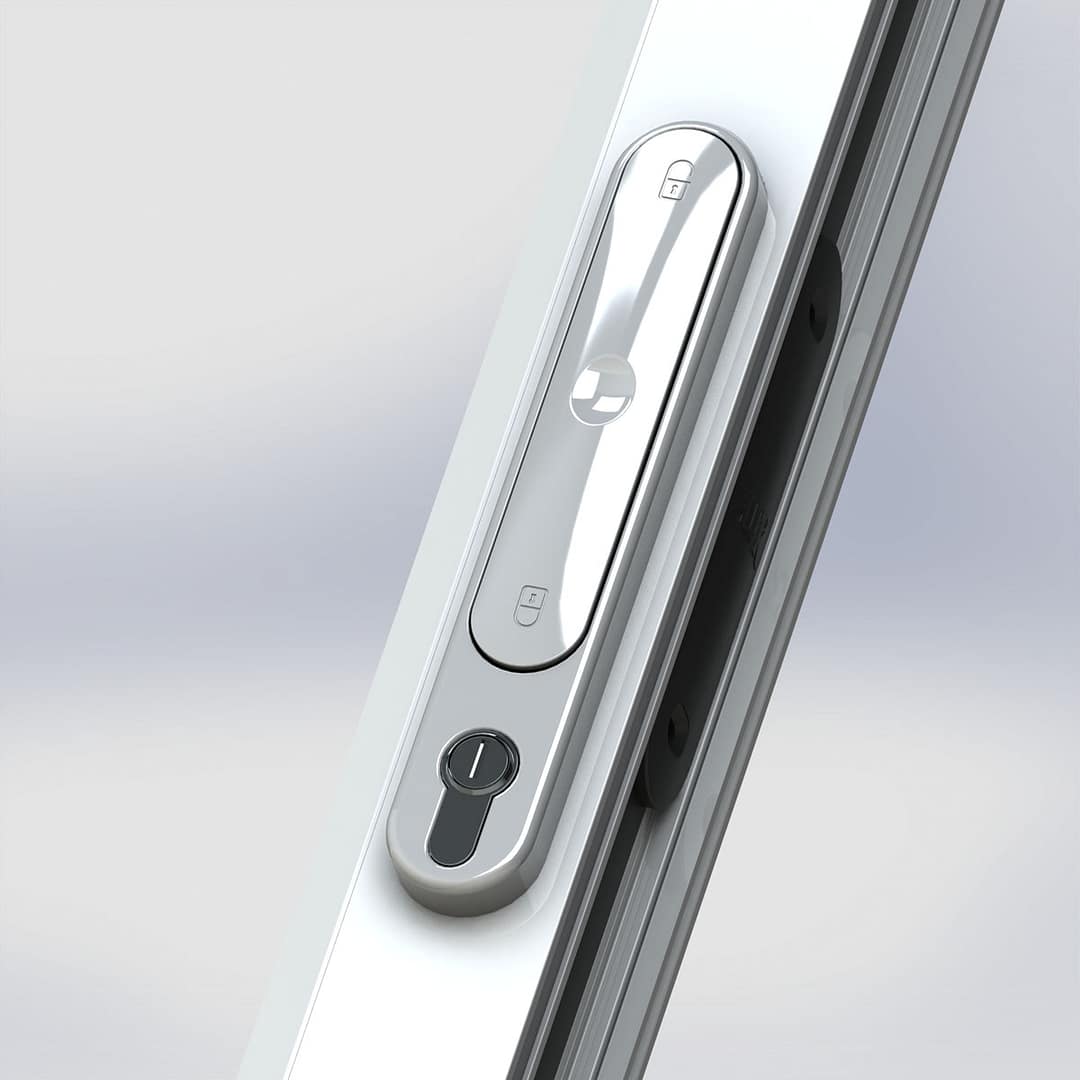

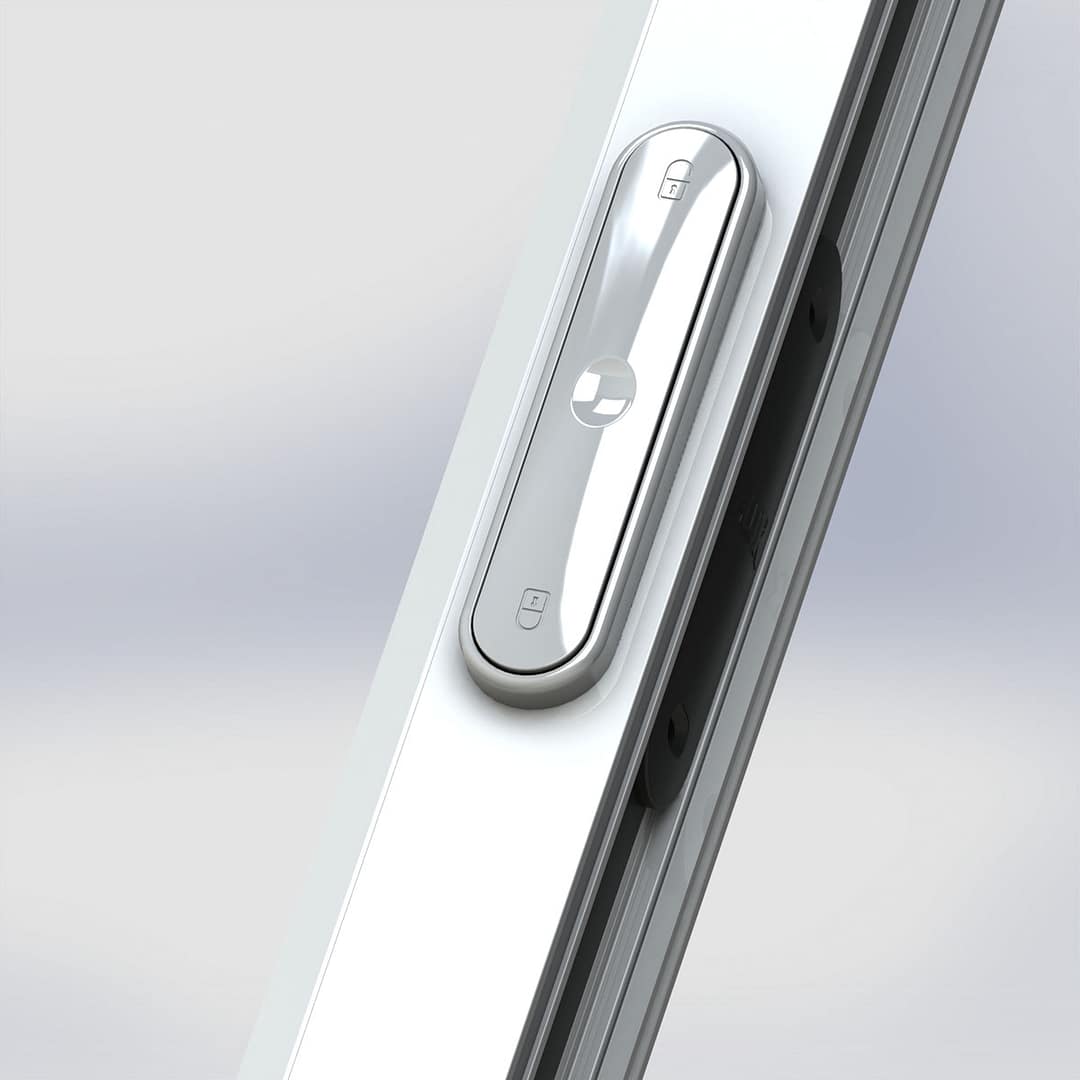

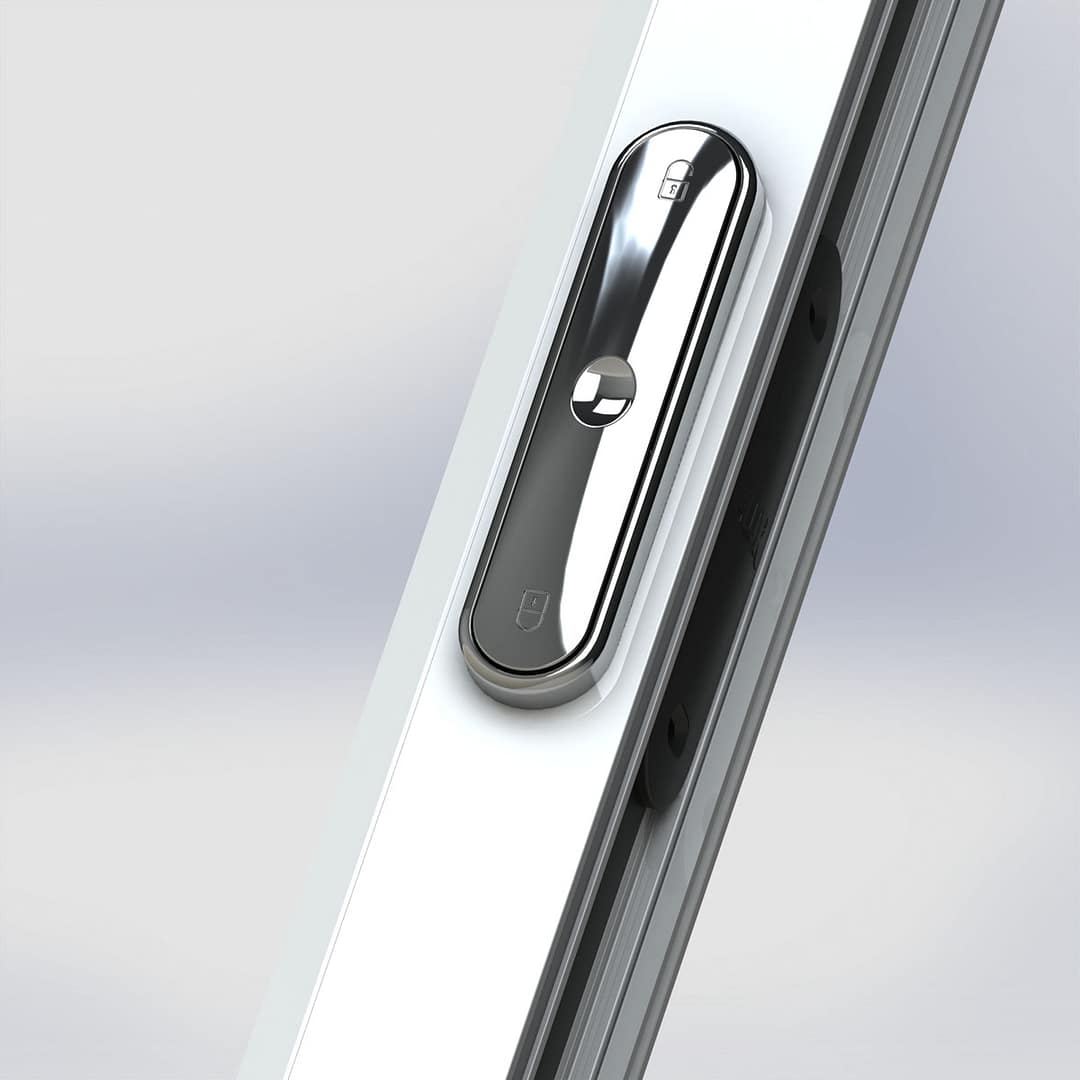

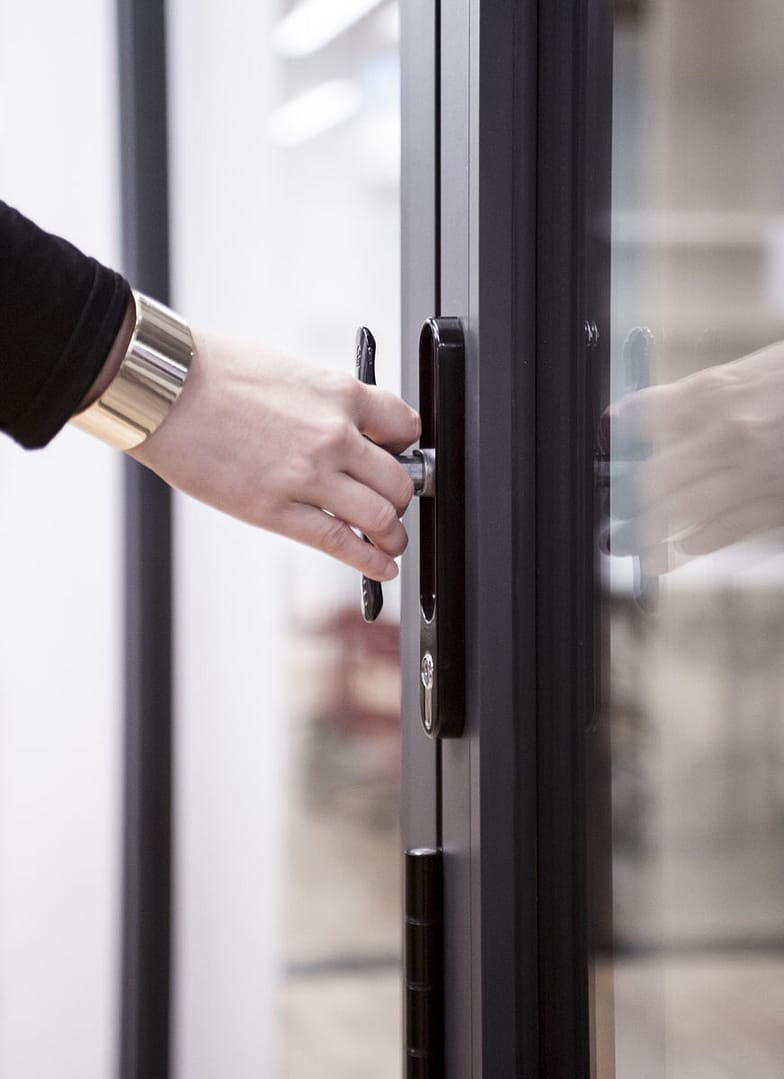

  • Unique, pop-out handle that allows for maximum door opening and panels to stack square
  • Four stainless style rollers to ensure smooth and consistent operation

Options

  • Chamfered and square bead options
  • Glazing 28mm – 44mm
  • Available in a range of opening configurations
  • Available with heavy duty rollers; BSF70 HI HD
  • Available in a range of single or dual colour and anodised finishes
Data Sheets
Wall Chart
Product Data Card
Installation Guide

* Sections provided are typical examples of this window system, there are many options available, for details of the exact sections used in your quote, please request the CAD detail from us when discussing your quote.

Properties

U value W/m²K (Double glazing)
1.6 W/m²K
U value W/m²K (Triple glazing)
1.4 W/m²K
Certifications
Q-mark
Max Vent Weight
100 kg
Sightline (Head)
110mm
Sightline (Cill)
130mm
Sightline (Jamb)
110mm
Sightline (Meeting Stile)
140mm
Max sash width (mm)
1200
Max sash height (mm)
3000
Frame dimension
70 mm
Dual colour option
Yes
Multi-point locking
Yes
Glazing options
Internal bead
Glazing thickness
24mm – 40mm

Performance

Comfort

Reynaers CS77 Windows and Doors
Air tightness (Pa)
Class 4 (600 Pa)
Reynaers CS77 Windows and Doors
Water tightness (Pa)
Class 9a (600 Pa)
Reynaers CS77 Windows and Doors
Wind load (Pa)
Class AE2400 (2400 Pa)

Safety

Reynaers CS77 Windows and Doors
Security
PAS 24

Energy

The technical information shown above is based on typical tests, the size of the windows, glass choice and profile choice can all affect the achieved rating, please ask us if you are unsure what your actual windows achieve, we are able to provide a variety of reports.
