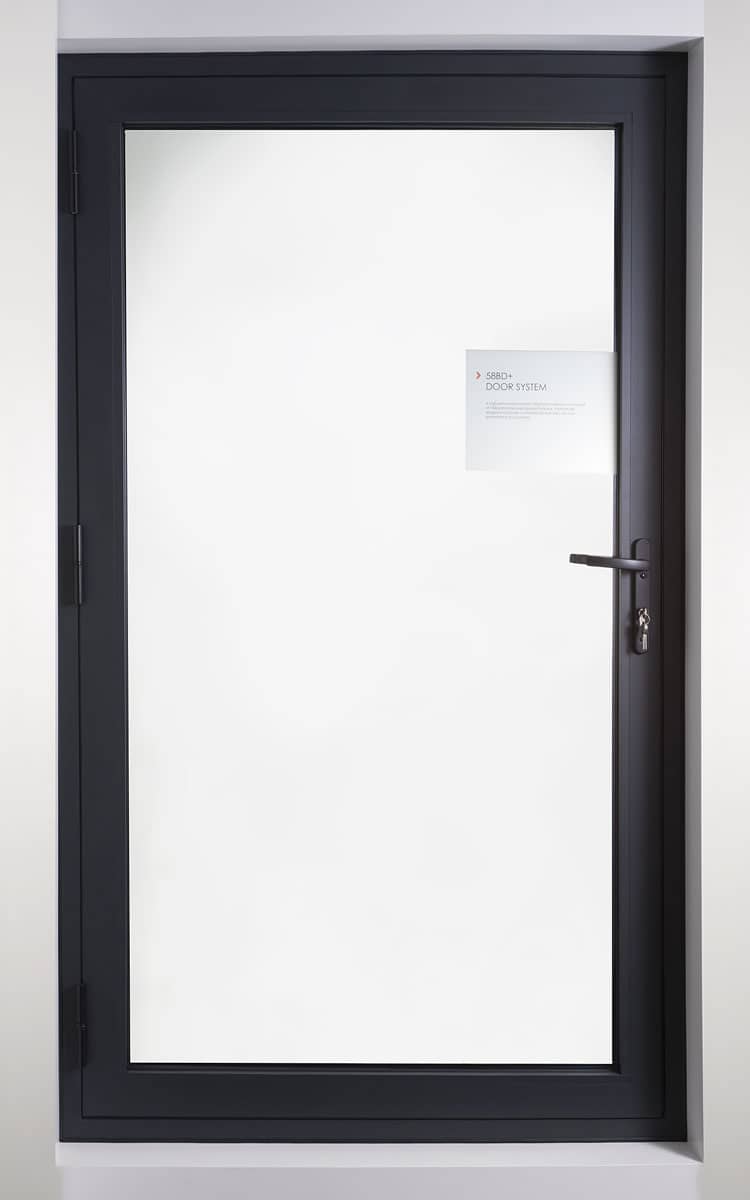

ALuK Optio 58BD Flush Entrance Door

Contemporary, modern.

Available in a variety of formats, with slim sightlines and flush aesthetics.

  • Features
  • Downloads
  • Technical Information
  • Opening Options

Design features

  • Tested to PAS 24
  • Multi-point locking mechanism

Options

  • Accepts 24mm – 40mm double or triple glazing
  • Available in single and dual colour
  • Available for new build or refurbishments
  • Available in single or double door configuration
Datasheet
Wall Chart

* Sections provided are typical examples of this window system, there are many options available, for details of the exact sections used in your quote, please request the CAD detail from us when discussing your quote.

Properties

U value W/m²K (Double glazing)
1.6 W/m²K
U value W/m²K (Triple glazing)
1.4 W/m²K
Certifications
Q-mark
Durability EN1191 category
50,000 Cycles
System depth limit
58mm and 70mm
Maximum door leaf size limit
1200mm x 2400mm
Maximum door leaf weight limit
4 Hinges 150 Kg
Glazing thickness limit
24mm – 40mm

Performance

Comfort

Reynaers CS77 Windows and Doors
Air tightness (Pa)
Class 2 (300 Pa)
Reynaers CS77 Windows and Doors
Water tightness (Pa)
9A (600 Pa)
Reynaers CS77 Windows and Doors
Wind load (Pa)
Class A3 (1200 Pa)

Safety

Reynaers CS77 Windows and Doors
Security PAS 24
Yes

Energy

The technical information shown above is based on typical tests, the size of the windows, glass choice and profile choice can all affect the achieved rating, please ask us if you are unsure what your actual windows achieve, we are able to provide a variety of reports.
