ALuK Infinium Sliding Doors

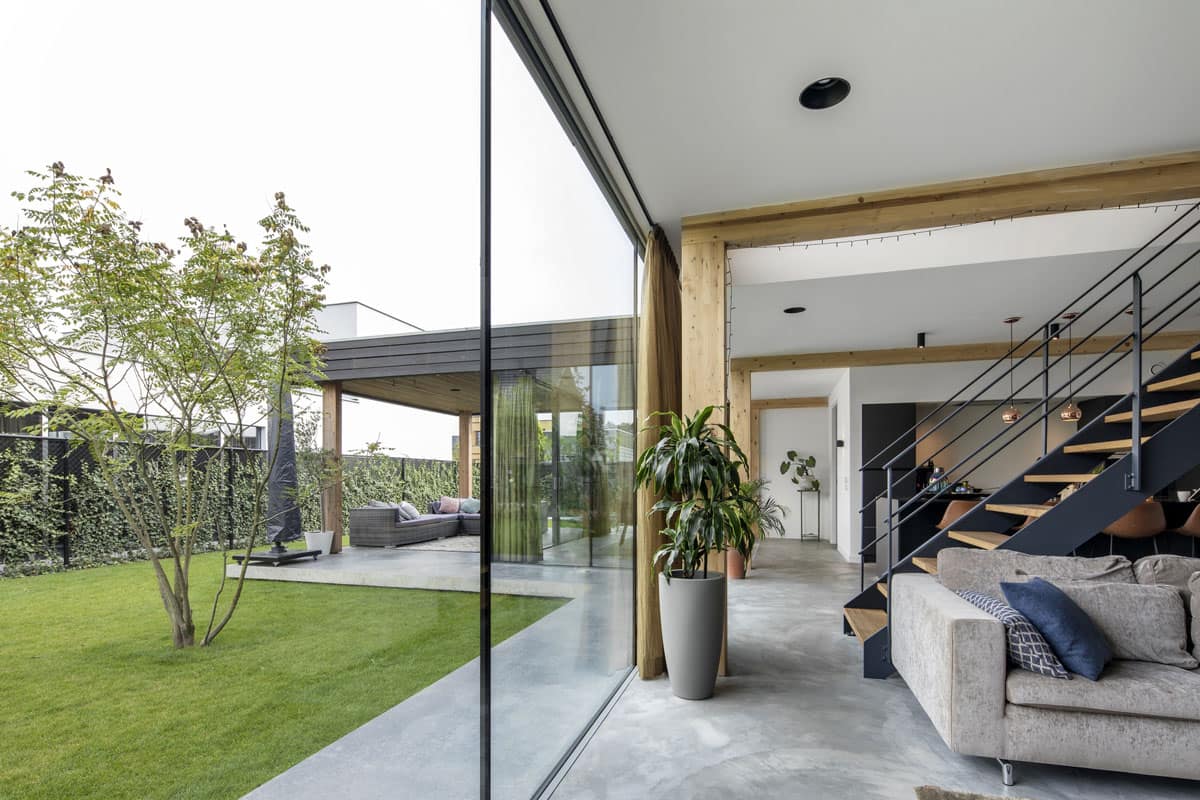

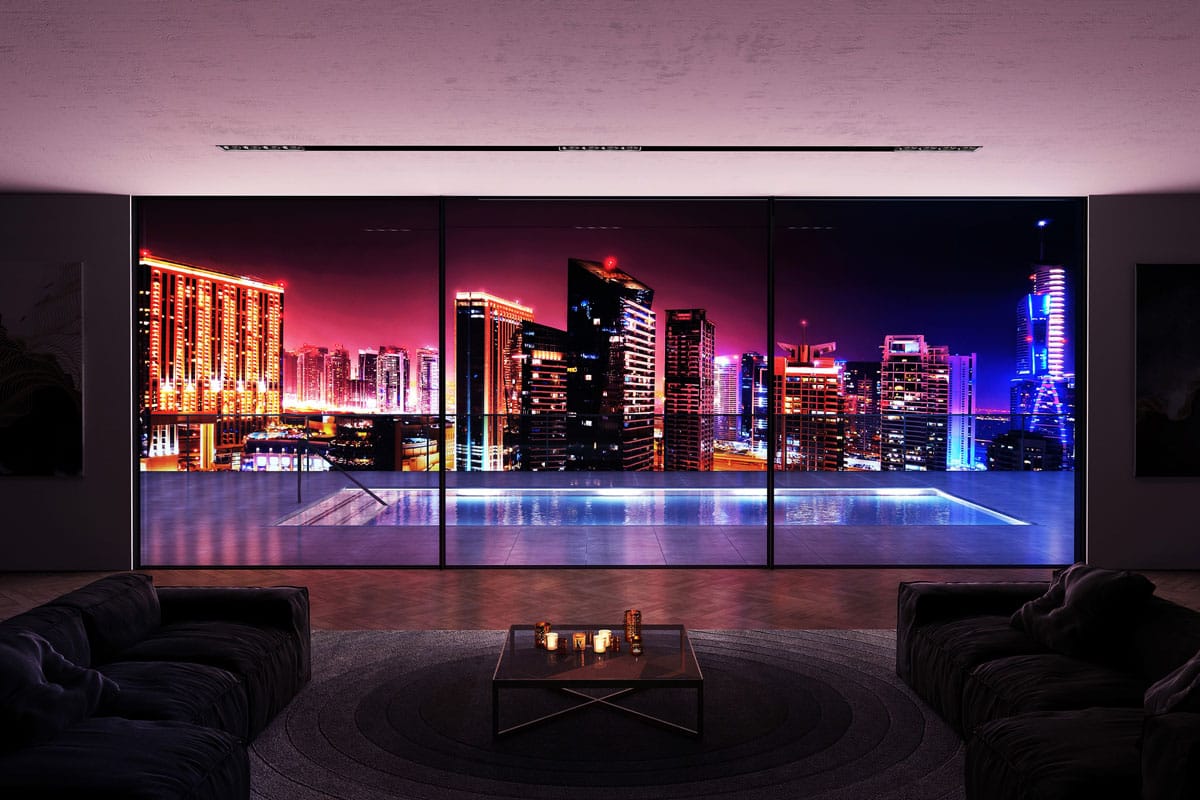

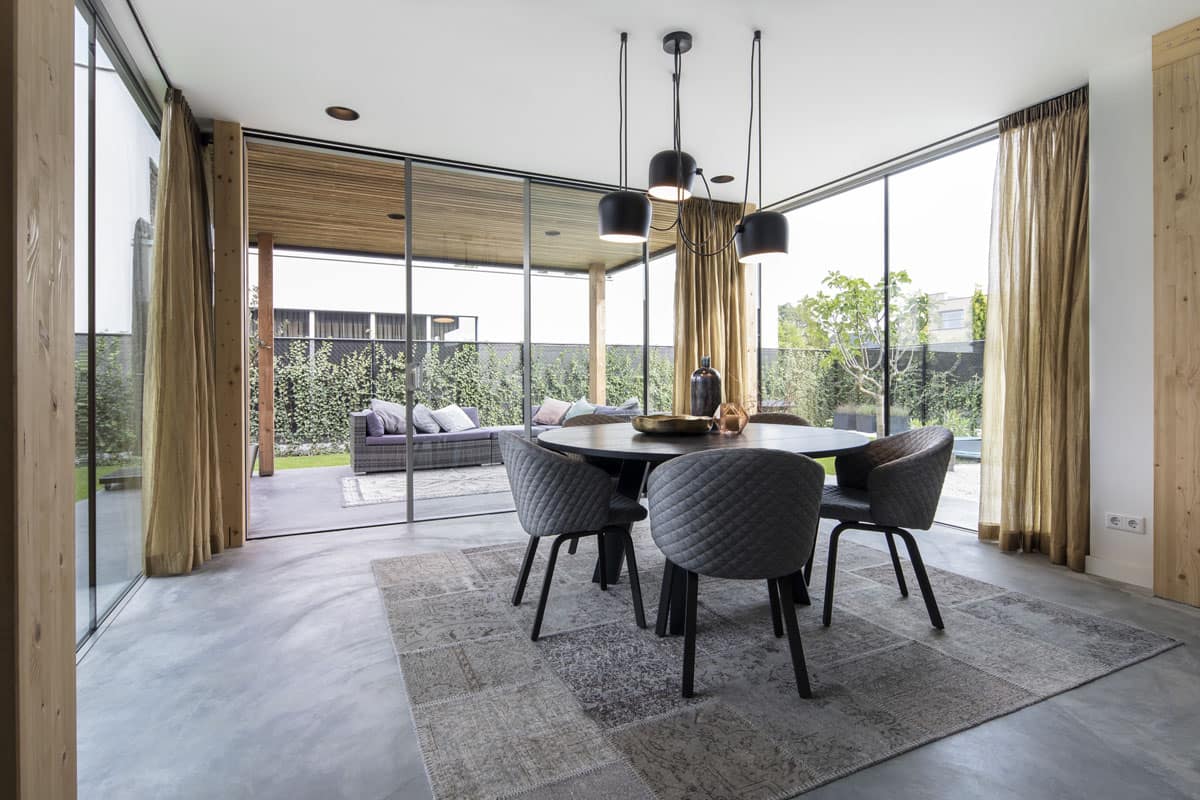

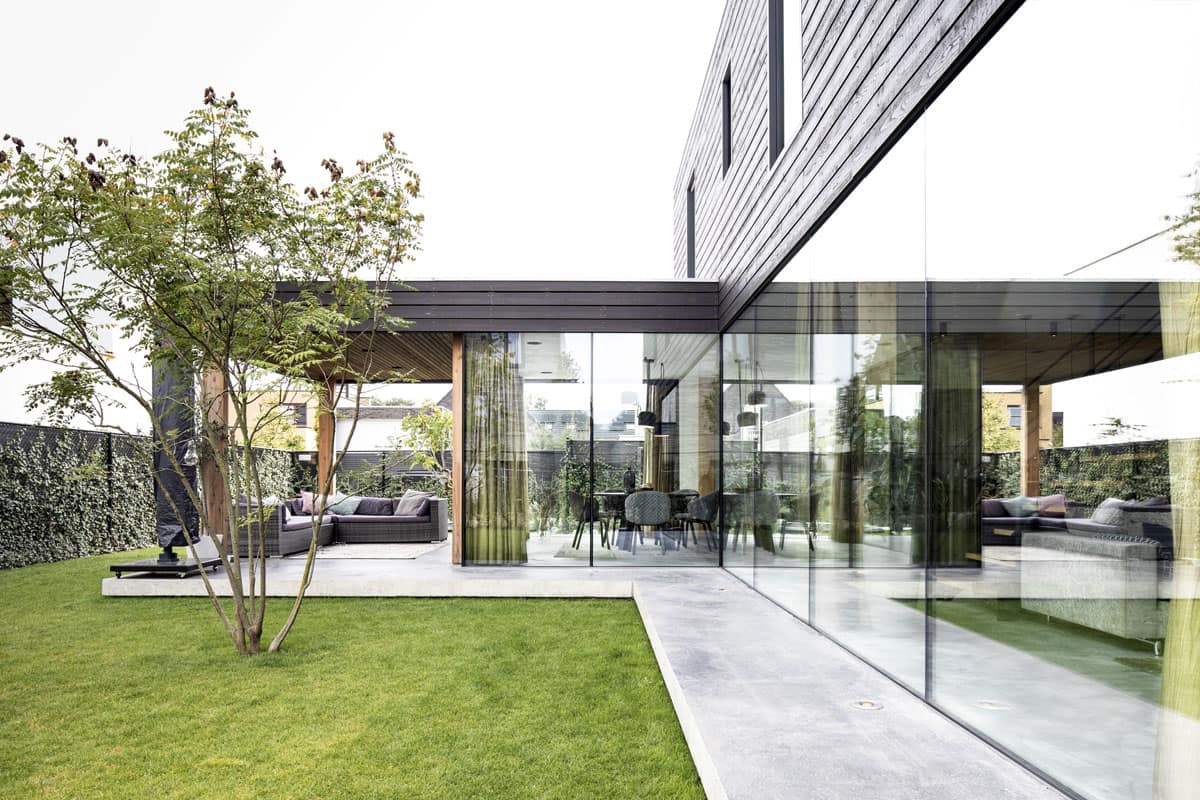

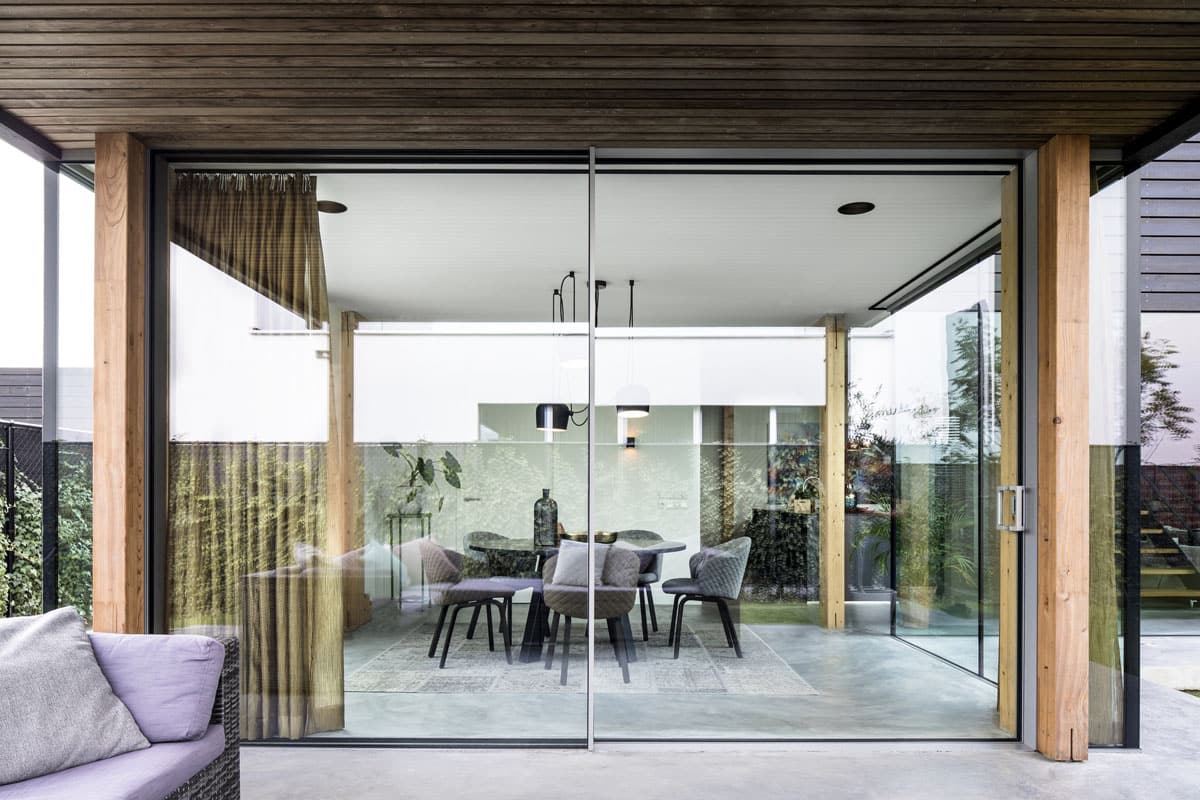

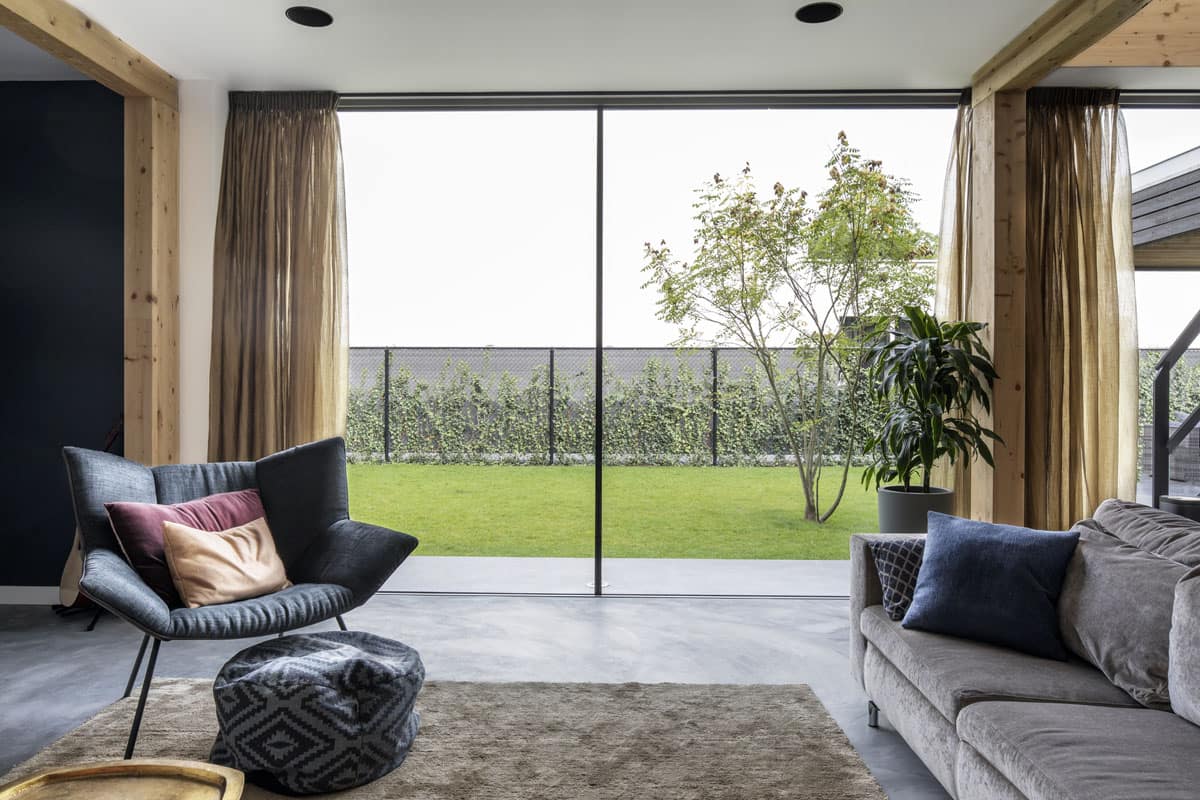

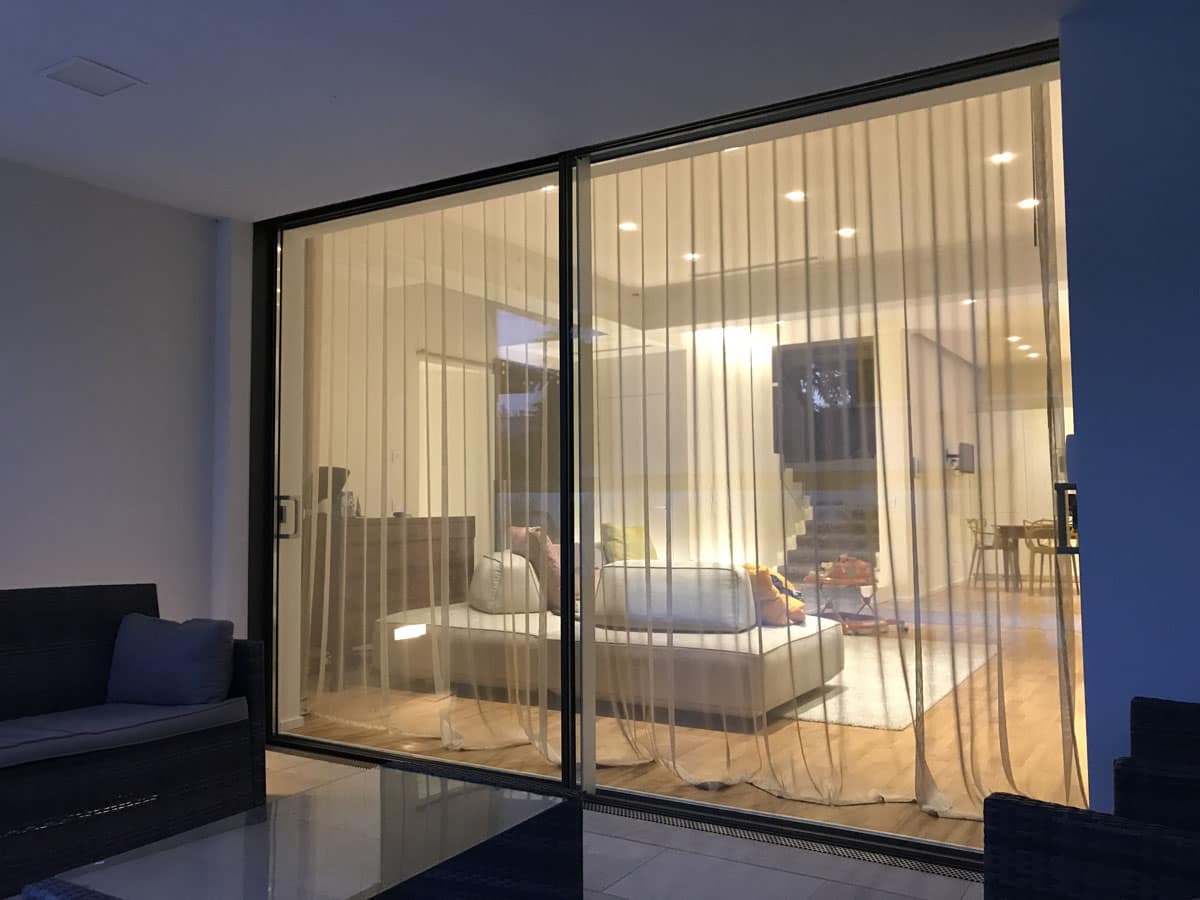

Infinium brings together indoor and outdoor living spaces in exquisite harmony. Free-flowing spaces are created thanks to stunningly slim sightlines that bathe every surface with natural light. Uninterrupted panoramic landscapes provide complete escapism, without need of escape. While seamlessly integrated floor-to-ceiling glazing reflects the clarity of thought behind every inspired design decision.

Fully concealed aluminium outer frame and sash. Flush thresholds. Elegantly simple operation. Infinium’s considered design impresses from every angle. However, its most remarkable design feature barely catches the eye. The impossibly thin 21 mm sightlines create the illusion of large endless spaces. The effect is charming, yet practical. Minimalist, yet undeniably magical.

  • Features
  • Downloads
  • Technical Information
  • Opening Options

Design features

  • Fully concealed outer-frame
  • Inline sliding door
  • One or more opening panels with large width dimensions up to 3000 mm (W) and height dimensions up to 3500 mm
  • 21 mm central interlock
  • Holds up to 400 kg panel weight
  • A bespoke central lock fully integrated into the interlock.

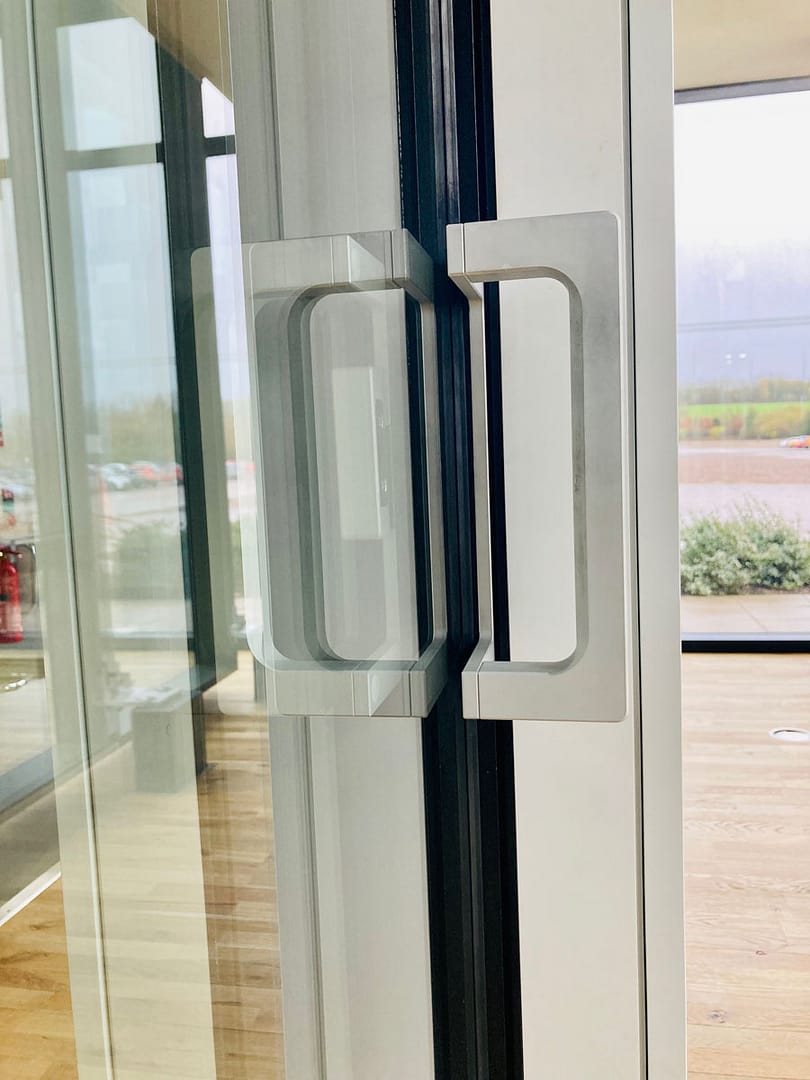

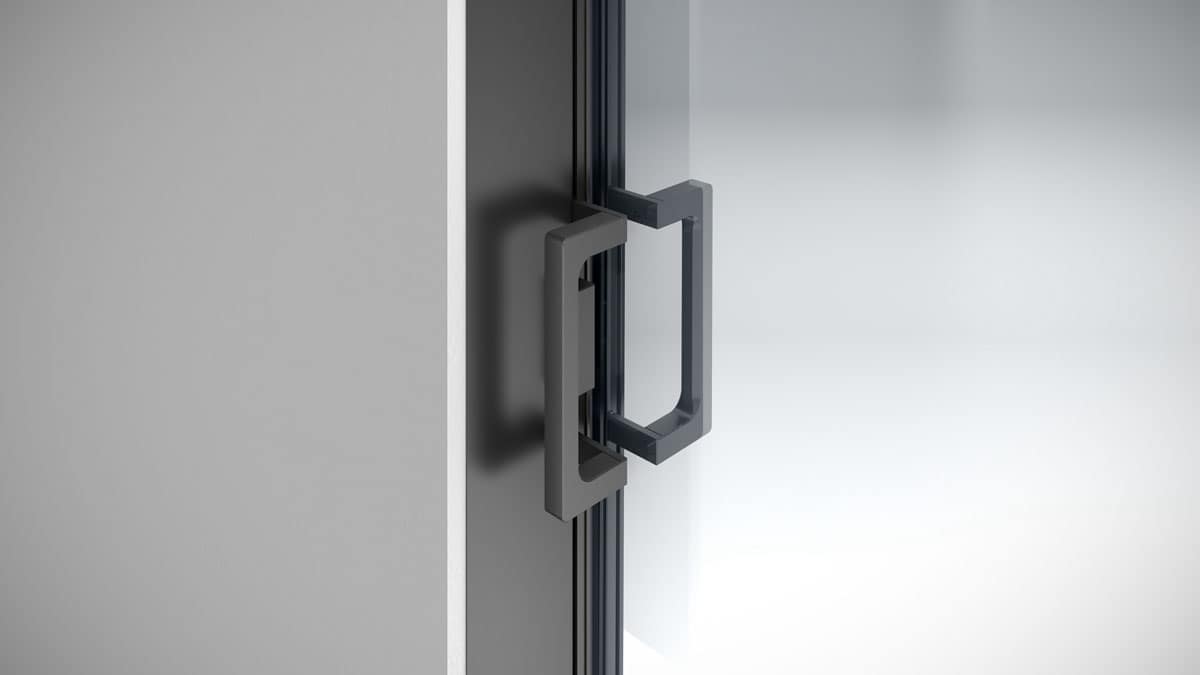

  • Lateral locking handle with concealed mechanism.
  • Motorised lock and sliding mechanism.

Options

  • Glazing options of 38 mm – 52 mm
  • Floating corner post option for larger opening space
  • Single or dual colour options, also available in anodised or powder coating finishes
  • Available in a range of configurations
  • Double or triple glazing solutions available on the same outer-frame.

Application type

New construction. Residential and commercial.
Especially high-end villas, penthouses and commercial buildings such as hotels.

Brochure

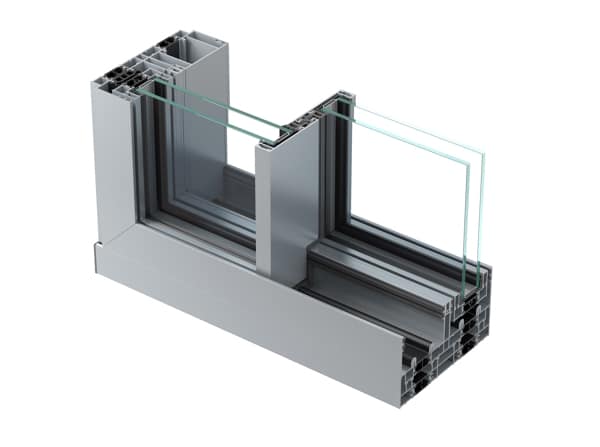

* Sections provided are typical examples of this window system, there are many options available, for details of the exact sections used in your quote, please request the CAD detail from us when discussing your quote.

Properties

Uw value W/m²K (Double glazing)
1.3 W/m²k
Uw value W/m²K (Triple glazing)
< 1.0 W/m²K
Max sash width (mm)
3000mm
Max sash height (mm)
3500mm
Max sash weight (kg)
400
Multi-point locking
Yes
Dual colour option
Yes
Glazing thickness
38mm – 52mm

Performance

Comfort

Reynaers CS77 Windows and Doors
Air tightness (Pa)
Class 4 (600 Pa)
Reynaers CS77 Windows and Doors
Water tightness (Pa)
Class 8A (450 Pa)
Reynaers CS77 Windows and Doors
Wind load (Pa)
Class C3 (1200 Pa, up to 160 km/h)

Safety

Energy

The technical information shown above is based on typical tests, the size of the windows, glass choice and profile choice can all affect the achieved rating, please ask us if you are unsure what your actual windows achieve, we are able to provide a variety of reports.
